Repair Procedures: Removal

Information

• Refer to the relevant system service information for component removal of room mirrors, rain sensors, multi-cameras, and antennas attached to the windshield glass.
• If the glass is changed or the position of the camera bracket is changed, adjust the camera.

1. Remove the inside rear view mirror assembly.

   (Refer to Mirror - "INSIDE REAR VIEW MIRROR ")

2. Remove the front pillar trim.

   (Refer to Interior Trim - "FRONT PILLAR TRIM ")

3. Remove the cowl top cover.

   (Refer to "COWL TOP COVER ")

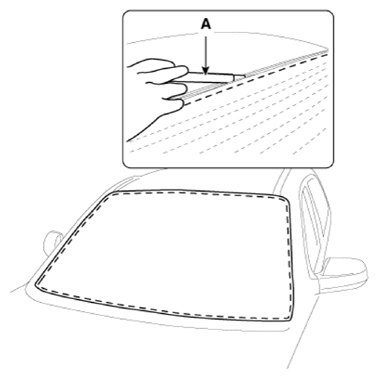

4. remove the windshield glass molding by Using a cutter (A) knife, carefully

   Information

   Use the cutter with a 20 to 30 cm-long blade.

   Courtesy of KIA MOTORS AMERICA, INC.

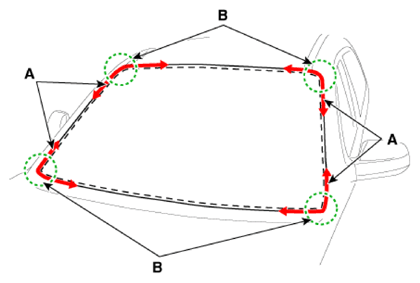

5. Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.

   Courtesy of KIA MOTORS AMERICA, INC.

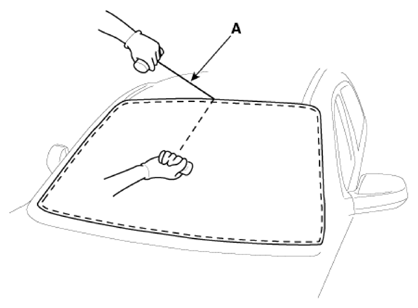

6. Put in a piano wire (A) through the corner of the windshield glass and insert wire grips into both ends of the wire.

   Courtesy of KIA MOTORS AMERICA, INC.

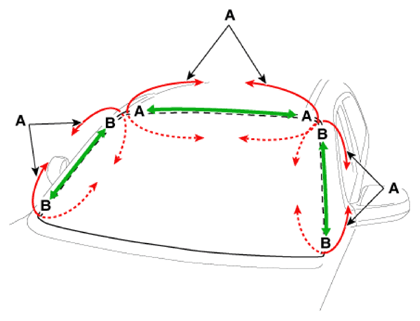

7. Cut off the sealant on (A-A), (B-B) while pulling a piano wire (A) left and right.
   CAUTION:

   • Put on gloves to protect your hands.
   • Be careful not to burn your hands as excessive heat may be generated when working on wires.
   • Be careful not to break the piano wire.

   Courtesy of KIA MOTORS AMERICA, INC.

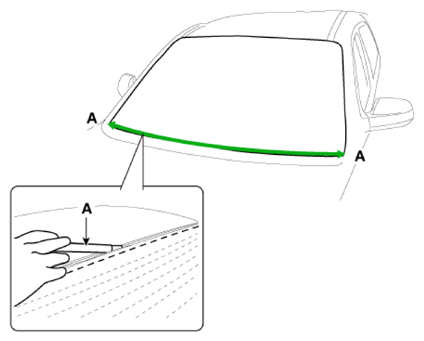

8. Cut off the sealant between A-A using a cutter knife (A).

   Information

   Use the cutter with a 20 to 30 cm-long blade.

   NOTE:

   • When cutting the sealant between A-A, be careful not to damage the crash pad.
   • Be careful not to damage the body painting surface.

     Courtesy of KIA MOTORS AMERICA, INC.

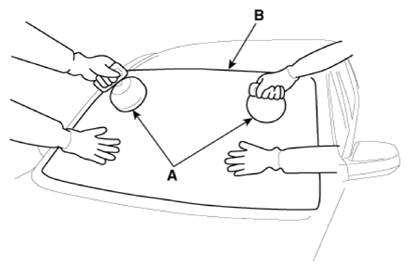

9. Remove the windshield glass (B) carefully using the glass holder (A).

   Courtesy of KIA MOTORS AMERICA, INC.
