Repair Procedures: Removal

Disconnect the battery negative (-) terminal.

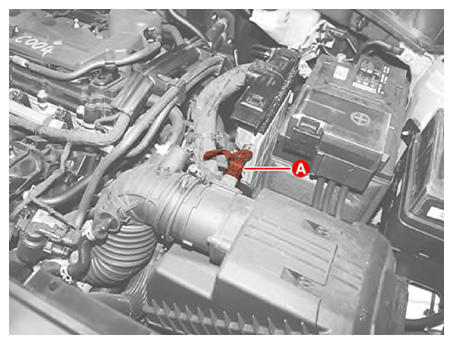

Disconnect the Air Flow Sensor (AFS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

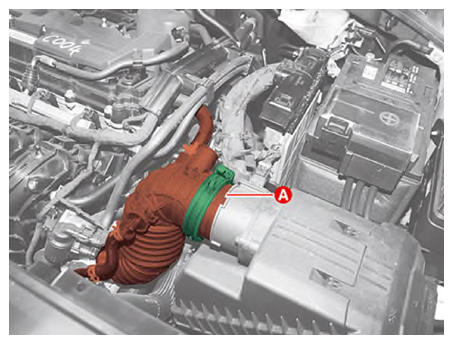

Separate the intake hose (A) by releasing the clamp.

Courtesy of KIA MOTORS AMERICA, INC.

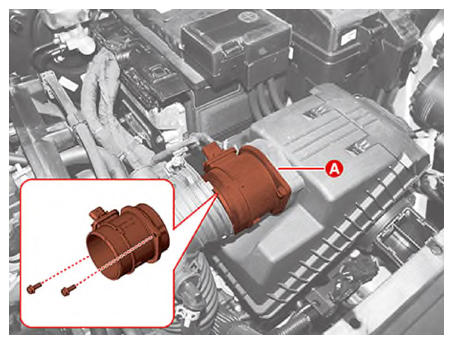

Remove the AFS (A) after removing the mounting bolts.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
