Repair Procedures: Removal

Disconnect the battery negative (-) terminal.

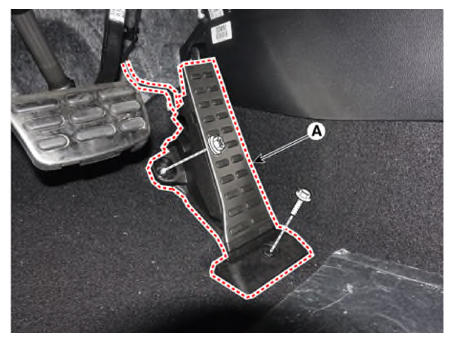

Remove the accelerator pedal module (A) after opening the caps and removing the mounting bolts.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft))

Courtesy of KIA MOTORS AMERICA, INC.

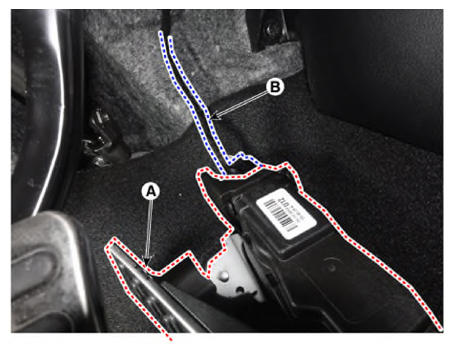

Disconnect the accelerator pedal connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
