Power Window Rear Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

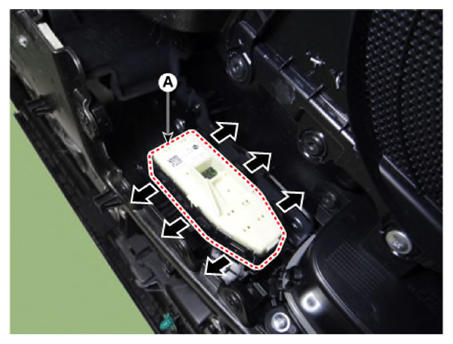

  3. Remove the power window rear switch (A) by pushing the holders in the direction of arrow.
    G13663472Courtesy of KIA MOTORS AMERICA, INC.
