Repair Procedures: Inspection

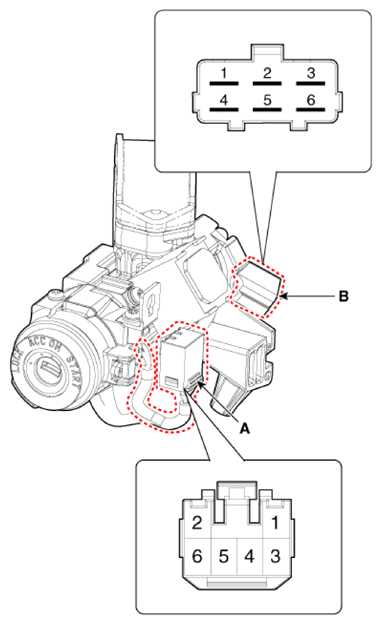

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
    G13663224Courtesy of KIA MOTORS AMERICA, INC.

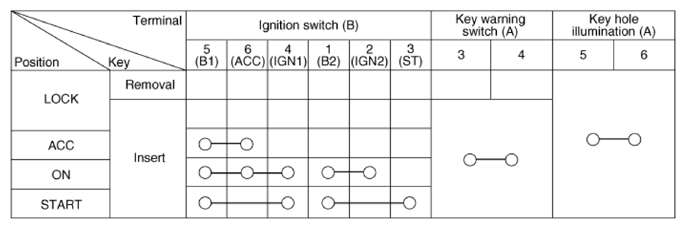

  2. Check for continuity between the terminals.
    G13663225Courtesy of KIA MOTORS AMERICA, INC.
