Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. Perform the TCM reset and learning procedure by using the KDS after replacing the TCM.

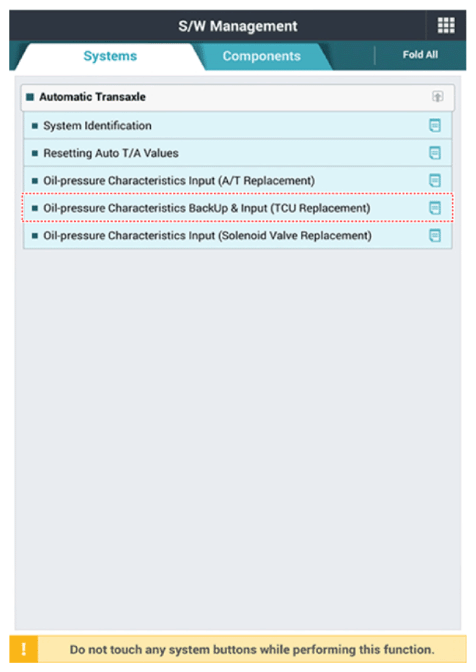

    1. Click the "Oil-pressure Characteristics BackUp & Input (TCU Replacement)".
      G13576313Courtesy of KIA MOTORS AMERICA, INC.

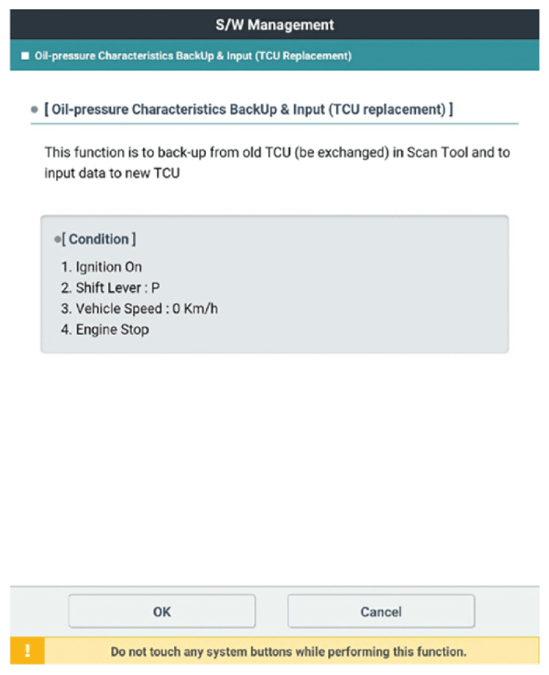

    2. Check the condition and then click the "OK".
      G13576314Courtesy of KIA MOTORS AMERICA, INC.
    3. Click the "Input".
      G13576315Courtesy of KIA MOTORS AMERICA, INC.

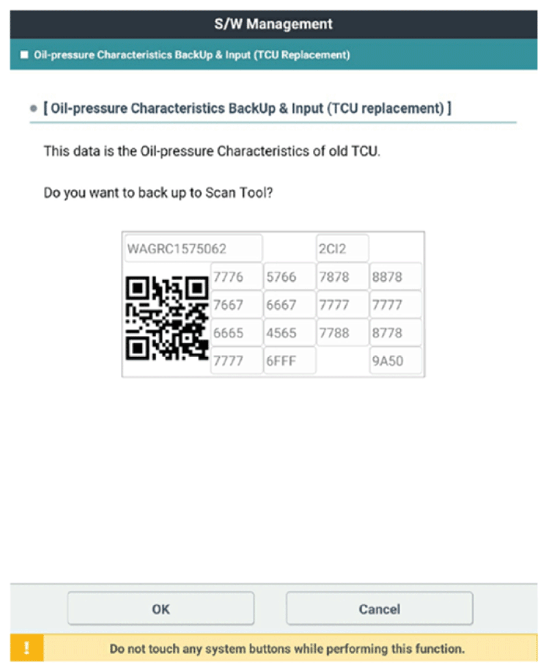

    4. Click the "OK".
      G13576316Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform TCM learning procedure.

    (Refer to Automatic Transaxle System - "ADJUSTMENT ")
