Component Location

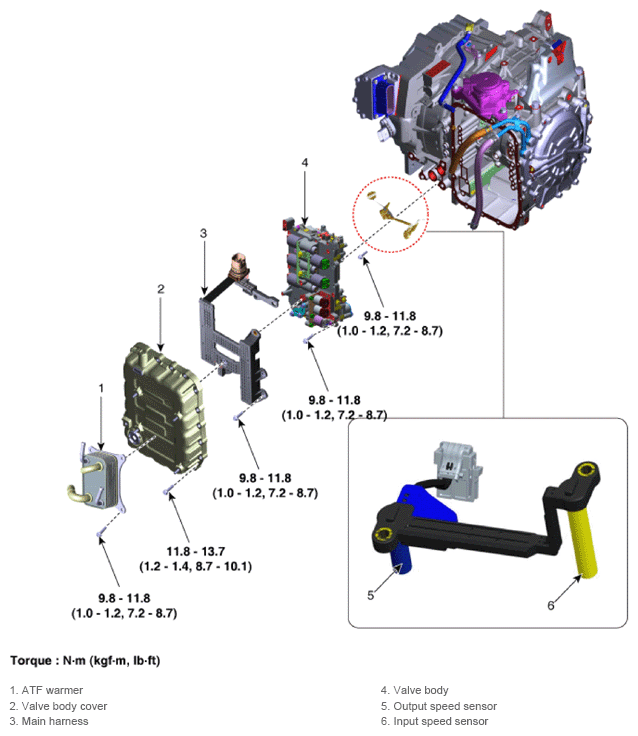

Fig 1: Output Speed Sensor Components Location With Torque Specification

G13576329

Courtesy of KIA MOTORS AMERICA, INC.
