Home >> Kia >> 2021 >> Sorento Hybrid S >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System (HEV) >> Components And Components Location >> Component

Components And Components Location: Component

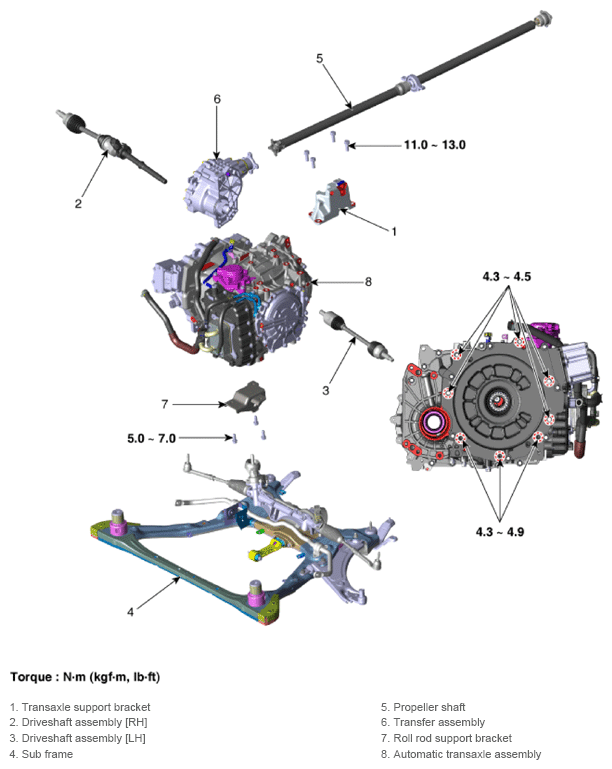

Fig 1: Automatic Transaxle System Components Location With Torque Specification

G13576365

Courtesy of KIA MOTORS AMERICA, INC.
