Repair Procedures: Removal: Exhaust

G13576105Courtesy of KIA MOTORS AMERICA, INC.
  1. Remove the VFS (A) after removing the mounting bolts.

    Tightening torque  :

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

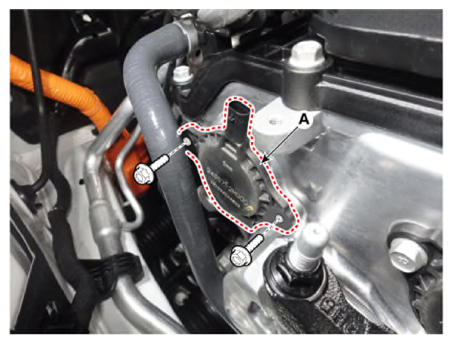

G13576107Courtesy of KIA MOTORS AMERICA, INC.
