Connector and Terminal Function

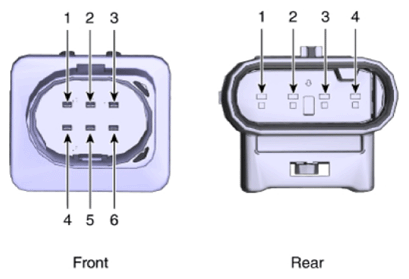

G13576073Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
Front Rear
1 NERNST voltage Sensor Signal +
2 Heater + Sensor Ground -
3 Virtual Ground Heater +
4 Resistance Heater -
5 Heater -
6 Pumping Current
