Connector and Terminal Function

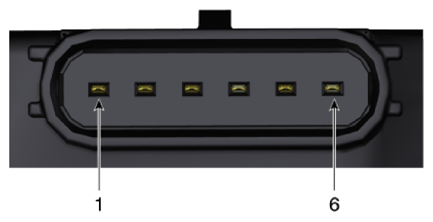

G13576025Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 Motor (+)
2 Motor (-)
3 5 V
4 TPS 2
5 Ground
6 TPS 1
