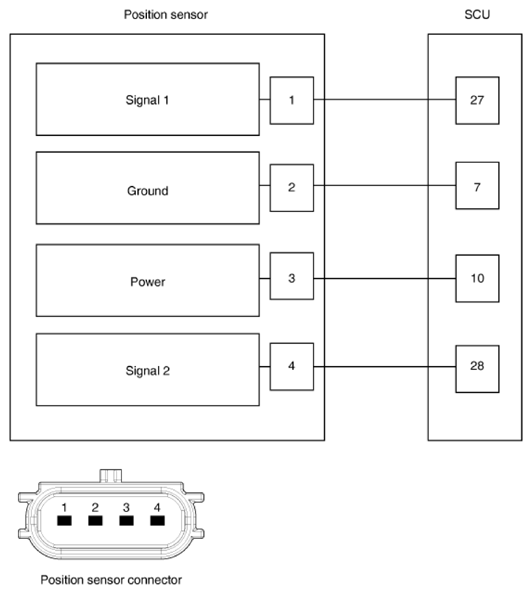

Home >> Kia >> 2021 >> Sorento Hybrid EX >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System (HEV) >> Position Sensor >> Schematic Diagrams >> Circuit Diagram
