System Inspection: Notes
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

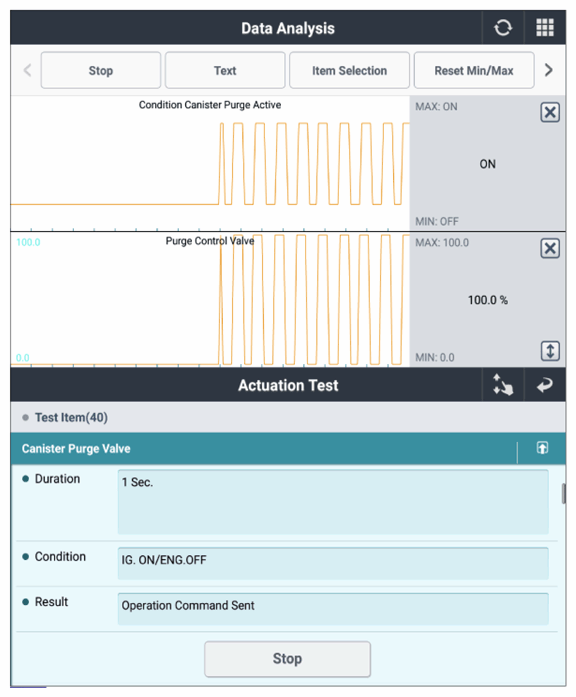

Fig. 1 |
Good
- Go to "Visual Check" procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the PCSV and go to "VERIFICATION OF REPAIR " procedure.
