Monitor DTC Status

Inspection Condition  Inspection Procedure  Reference
  • Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)
  2. Monitor "Diagnostic Trouble Codes (DTC) with KDS.

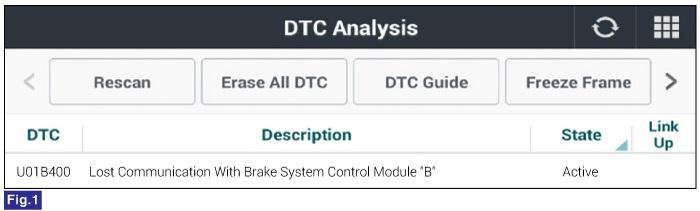

 Fig. 1
G00608044Courtesy of KIA MOTORS AMERICA, INC.
Active Fault  Go to "Wiring Inspection " procedure.
History/Pending Fault  Go to "Verification of Repair " procedure.
