Repair Procedures: Removal

Release the residual pressure in the fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

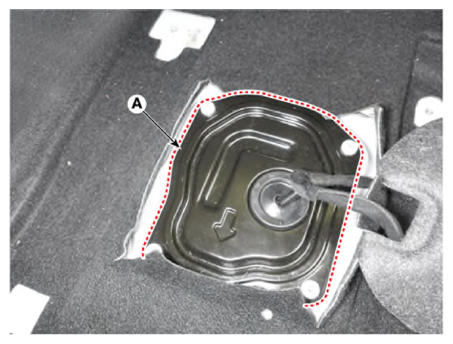

Remove the fuel pump service cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

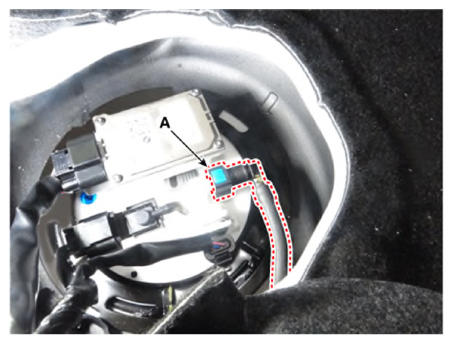

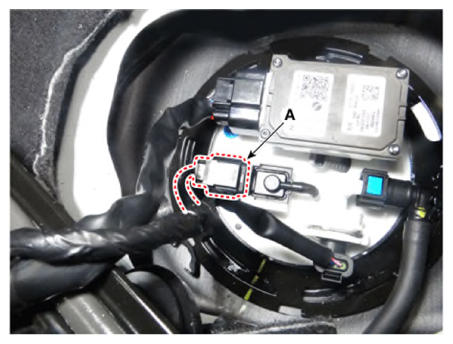

Disconnect the Fuel Tank Pressure Sensor (FTPS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

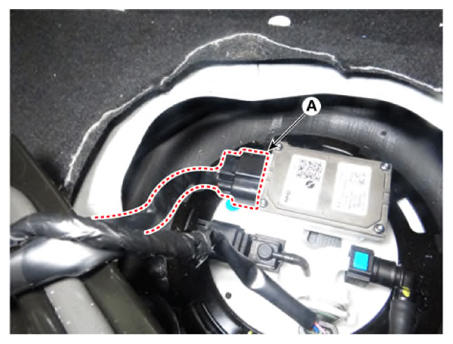

Disconnect the Fuel Pump Control Module (FPCM) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Separate the fuel feed quick-connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

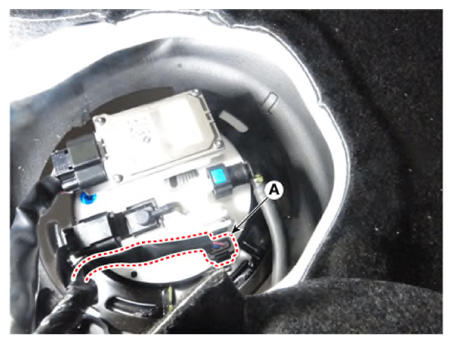

Disconnect the Fuel Pressure Sensor (FPS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear center muffler assembly.
(Refer to Engine Mechanical System - "MUFFLER ")

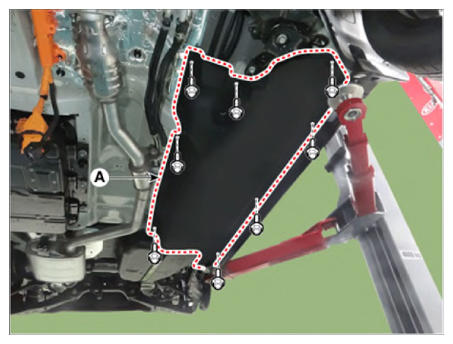

Remove the floor under cover (A) by removing the bolts.
Tightening torque:

7.8 - 11.8 N m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

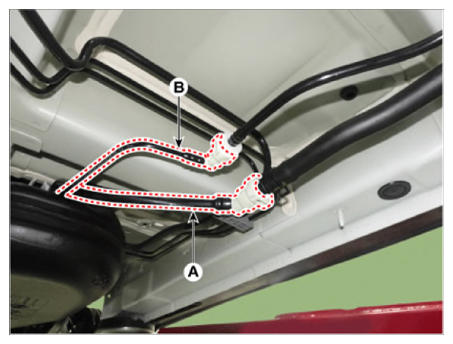

Separate the ventilation hose quick-connector (A) and vapor hose quick-connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

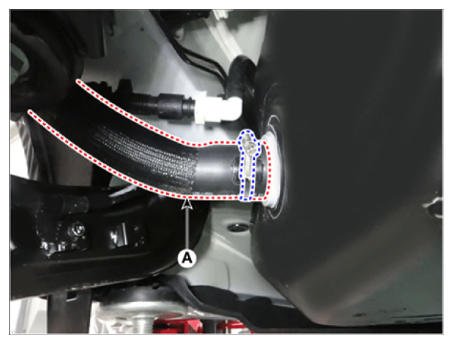

Separate the fuel filler hose (A) from the fuel filler pipe.

Courtesy of KIA MOTORS AMERICA, INC.

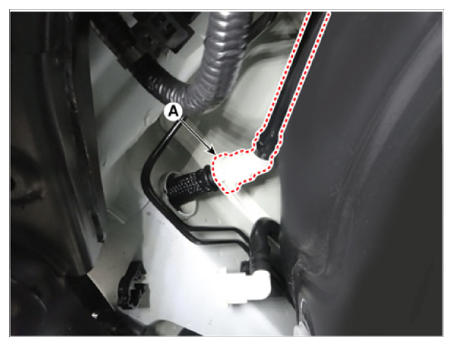

Separate the leveling hose quick-connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

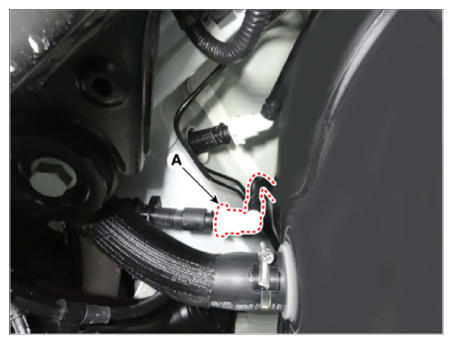

Separate the ventilation hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

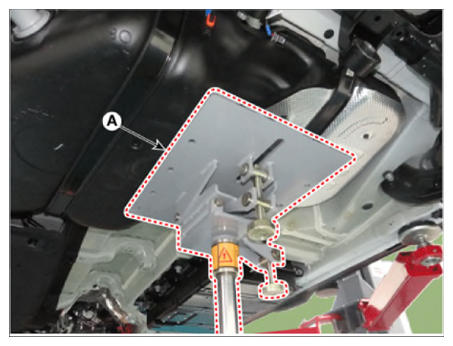

Support the fuel tank with a jack (A).

Courtesy of KIA MOTORS AMERICA, INC.

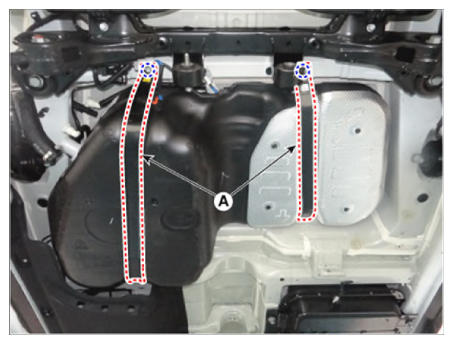

Remove the fuel tank band (A) after removing the mounting bolts.
Tightening torque:

40.0 - 53.9 N.m (4.0 - 5.5 kgf.m, 29.0 - 39.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel tank by lowering the jack slowly.
