Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

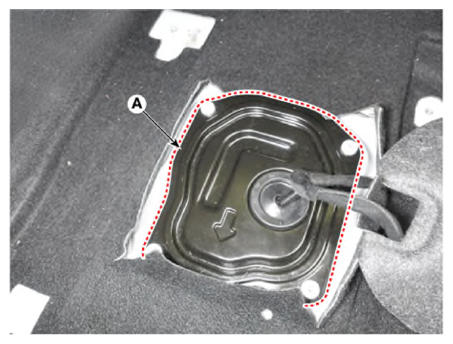

  3. Remove the fuel pump service cover (A).
    G13576149Courtesy of KIA MOTORS AMERICA, INC.

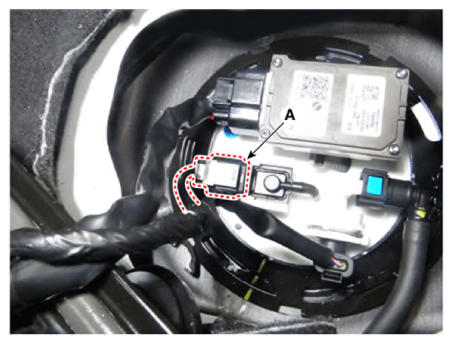

  4. Disconnect the Fuel Tank Pressure Sensor (FTPS) connector (A).
    G13576150Courtesy of KIA MOTORS AMERICA, INC.

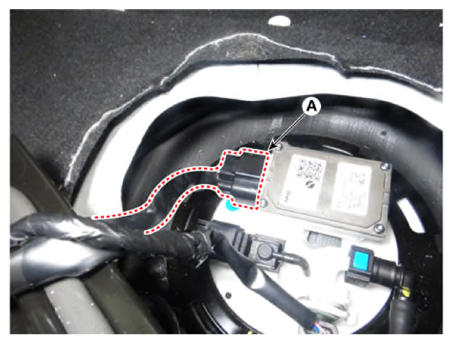

  5. Disconnect the Fuel Pump Control Module (FPCM) connector (A).
    G13576151Courtesy of KIA MOTORS AMERICA, INC.

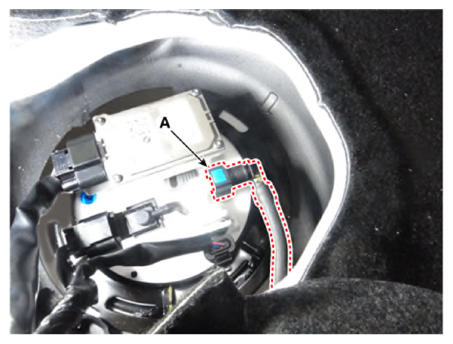

  6. Separate the fuel feed quick-connector (A).
    G13576152Courtesy of KIA MOTORS AMERICA, INC.

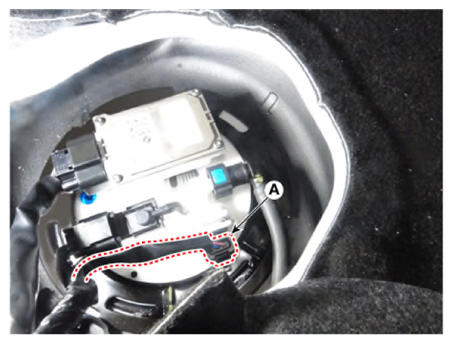

  7. Disconnect the Fuel Pressure Sensor (FPS) connector (A).
    G13576153Courtesy of KIA MOTORS AMERICA, INC.

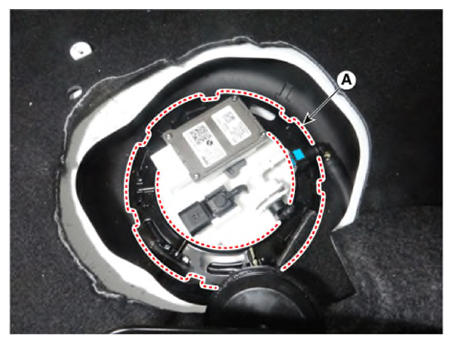

  8. Remove the fuel pump module after removing the plate cover (A) by using a SST (09310-B8100).
    G13576154Courtesy of KIA MOTORS AMERICA, INC.
