Repair Procedures: Removal

NOTE: If the FPCM needs to be replaced, replace the plate cover assembly.
  1. Remove the fuel pump module.

    (Refer to Fuel Delivery System - "FUEL PUMP MODULE ")

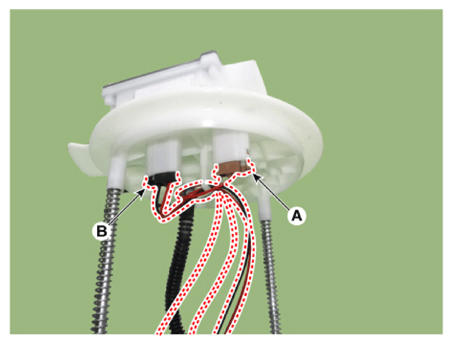

  2. Disconnect the fuel sender connector (A) fuel pump connector (B).
    G13576238Courtesy of KIA MOTORS AMERICA, INC.

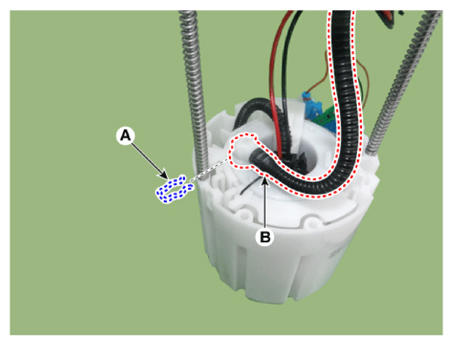

  3. Separate the fuel feed tube quick-connector (B) after removing the fixing clip (A).
    G13576239Courtesy of KIA MOTORS AMERICA, INC.

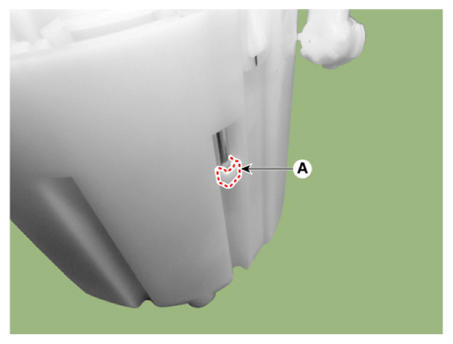

  4. Remove the stopper (A).
    G13576240Courtesy of KIA MOTORS AMERICA, INC.

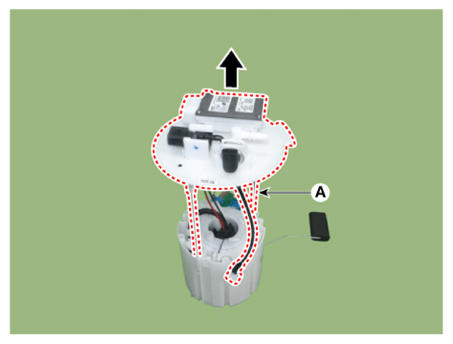

  5. Remove the plate cover assembly (A).
    G13576241Courtesy of KIA MOTORS AMERICA, INC.
