Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

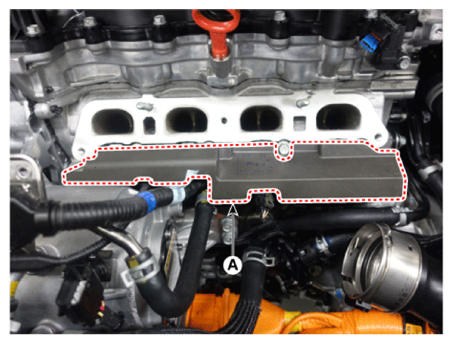

Remove the injector foam (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the high pressure fuel pipe.
(Refer to Fuel Delivery System - "FUEL LINE ")
Remove the HSG.
(Refer to Hybrid Motor System - "HYBRID STARTER GENERATOR ")

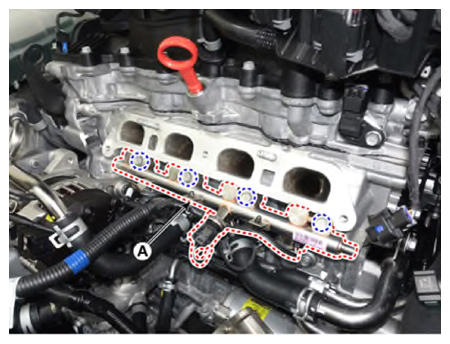

Remove the delivery pipe & injector (A) by removing the bolts.
Tightening torque:

24.5 - 27.5 N.m (2.5 - 2.8 kgf.m, 18.1 - 20.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

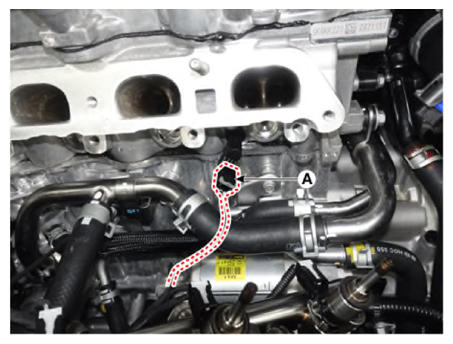

Disconnect the engine coolant temperature sensor #1 connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

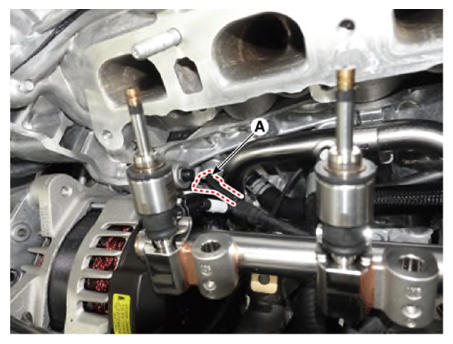

Disconnect the engine coolant temperature sensor #2 connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

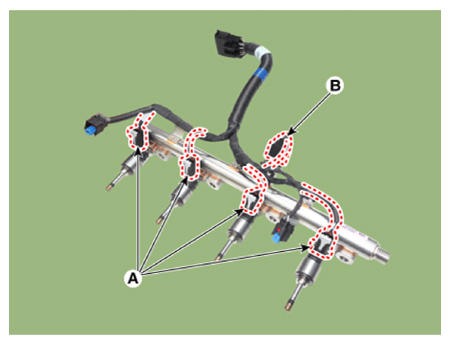

Disconnect the injector connectors (A) and rail pressure sensor connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

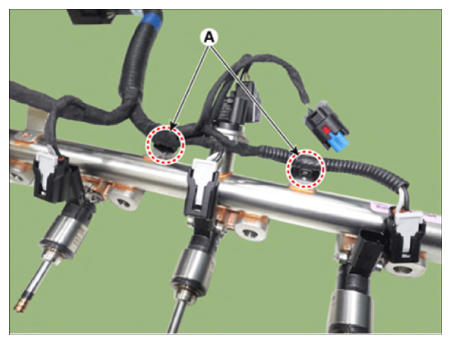

Remove the wiring fixing clips (A).

Courtesy of KIA MOTORS AMERICA, INC.

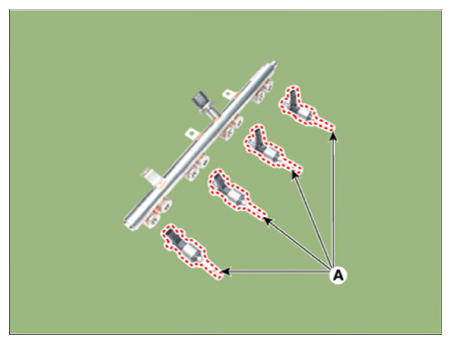

Remove the injector (A) from the delivery pipe.

Courtesy of KIA MOTORS AMERICA, INC.

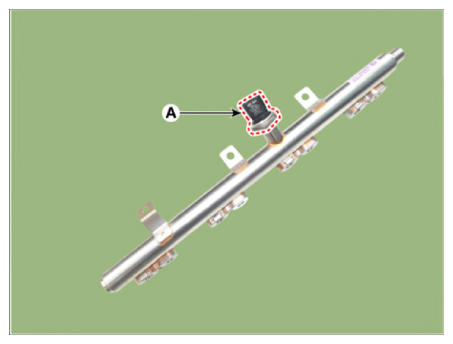

Remove the rail pressure sensor (A) from the delivery pipe.

Courtesy of KIA MOTORS AMERICA, INC.
