Repair Procedures: Removal

Engine Coolant Temperature Sensor (ECTS) - ITM

1. Remove the air cleaner assembly.

   (Refer to Engine Mechanical System - "AIR CLEANER ")

2. Disconnect the Engine Coolant Temperature Sensor (ECTS) connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

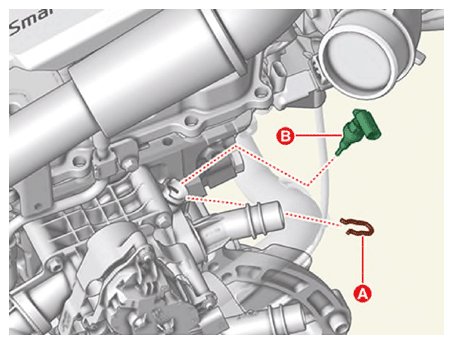

3. Remove the ECTS (B) after removing the fixing clip (A).

   Courtesy of KIA MOTORS AMERICA, INC.

Engine Coolant Temperature Sensor (ECTS) - Water pump

1. Remove the engine room under cover.

   (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

2. Disconnect the ECTS connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the ECTS (A) after removing the mounting bolt.

   Tightening torque:

   9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

Engine Coolant Temperature Sensor (ECTS) - Cylinder block

1. Remove the intake manifold.

   (Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

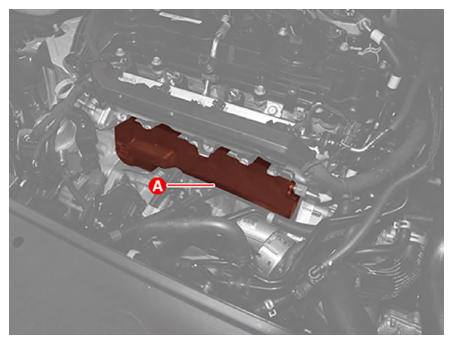

2. Remove the injector foam (A).

   Courtesy of KIA MOTORS AMERICA, INC.

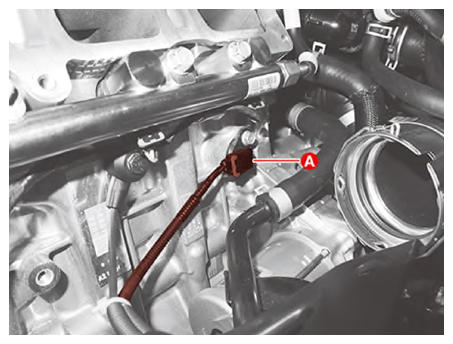

3. Disconnect the ECTS connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

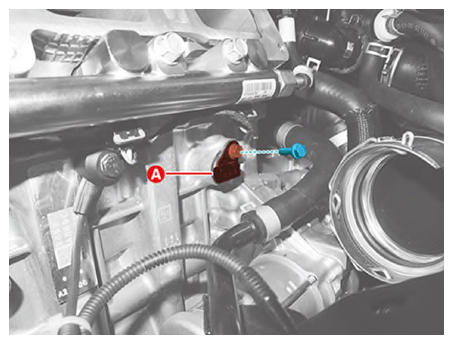

4. Remove the ECTS (A) after removing the mounting bolt.

   Tightening torque:

   9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.
