Repair Procedures: Removal

Disconnect the battery negative (-) terminal.

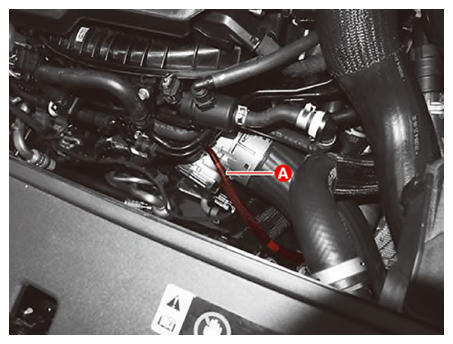

Separate the Electric Recirculation Control Valve (E-RCV) hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

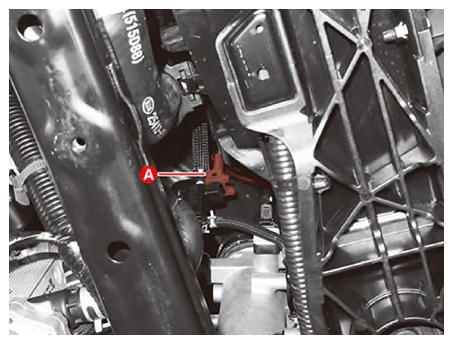

Disconnect the E-RCV connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

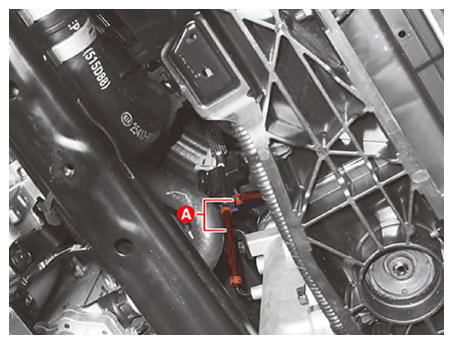

Separate the E-RCV hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

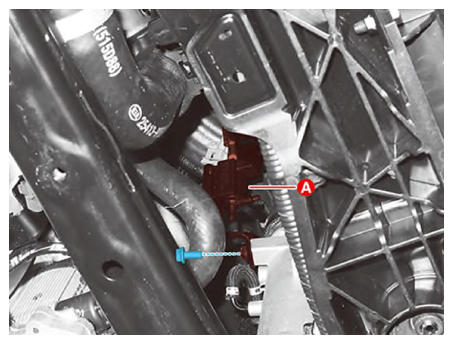

Remove the E-RCV (A) after removing the mounting bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

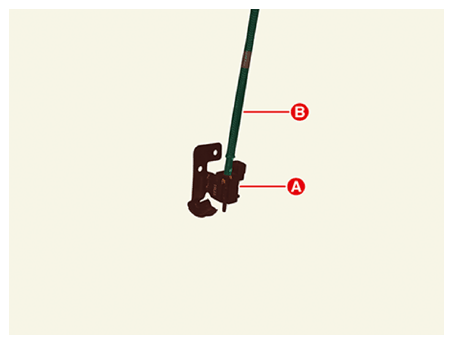

Separate the hose (B) from the E-RCV (A).

Courtesy of KIA MOTORS AMERICA, INC.
