Repair Procedures: Installation

NOTE:

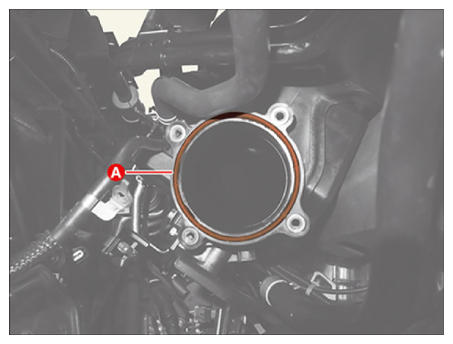

  • Check the seal ring (A) installation before installing the ETC module.
    G13664733Courtesy of KIA MOTORS AMERICA, INC.
  • Install the component with the specified torque.
  • Inspect invisible damage the part, when the part is dropped.
  1. Install in the reverse order of removal.

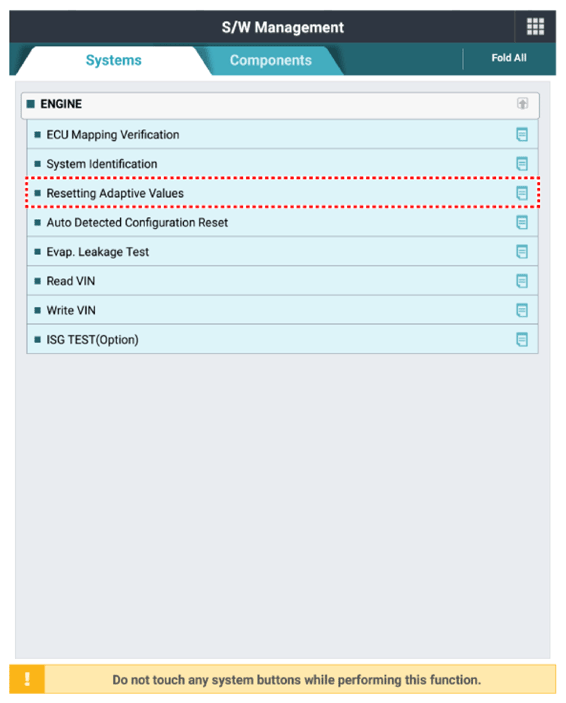

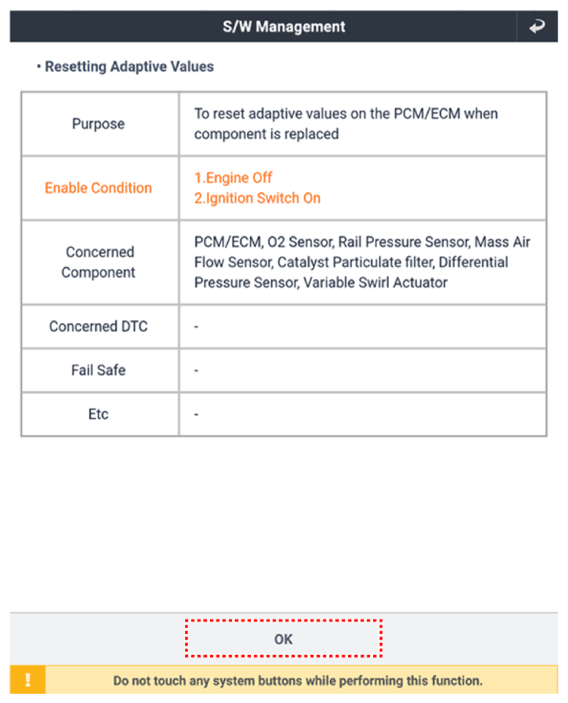

  2. Reset the ECM adaptive values after replacing the ETC.
    G13664734Courtesy of KIA MOTORS AMERICA, INC.
    G13664735Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the ETC learning procedure.

    (Refer to ETC (Electronic Throttle Control) System - "ADJUSTMENT ")
