Inspection Component

Throttle Position Sensor (TPS)

1. Connect the KDS on the Data Link Connector (DLC).
2. Start the engine and measure the output voltage of TPS 1 and 2 at C.T. and W.O.T.

   Specification  : Refer to "SPECIFICATION "

ETC Motor

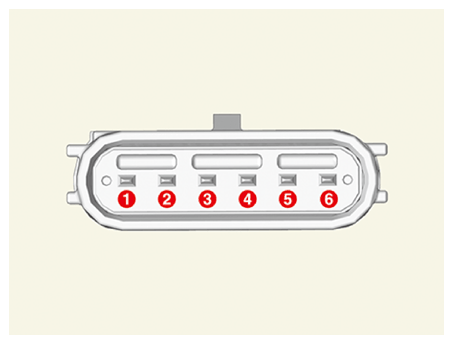

1. Measure resistance between the ETC module terminals 1 and 2 after disconnecting the connector.

   Courtesy of KIA MOTORS AMERICA, INC.

   Specification  : 1.71 - 2.09 Ω (Room temperature)
