Tailgate Outside Handle Switch

  1. Remove the tailgate lower trim.

    (Refer to Body - "TAILGATE TRIM ")

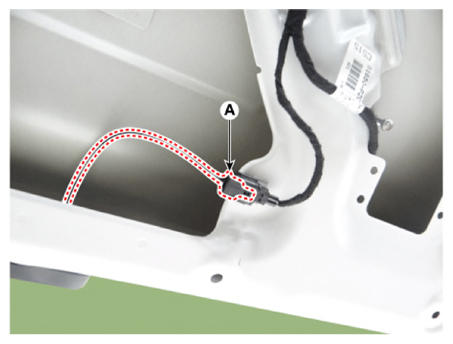

  2. Disconnect the tailgate outside handle swich connector (A).
    G13663564Courtesy of KIA MOTORS AMERICA, INC.

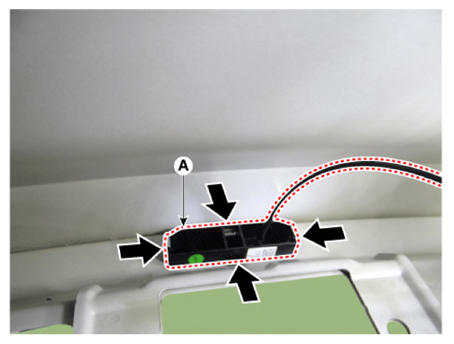

  3. Remove the tailgate outside handle switch (A) by pushing the hooks.
    G13663565Courtesy of KIA MOTORS AMERICA, INC.
