Tailgate Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate lower trim.

    (Refer to Body - "TAILGATE TRIM ")

  3. Check for continuity between the terminals.

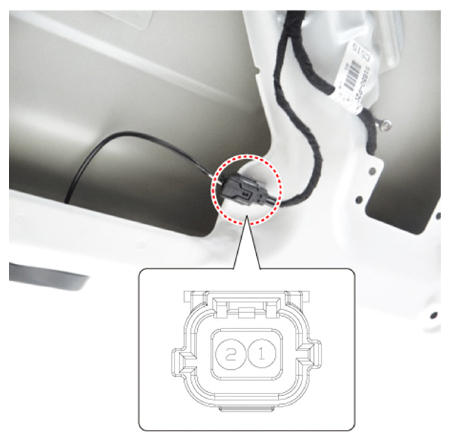

G13663567Courtesy of KIA MOTORS AMERICA, INC.
G13663568Courtesy of KIA MOTORS AMERICA, INC.
