Repair Procedures: Inspection: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front wheel guard.

    (Refer to Body - "FRONT WHEEL GUARD ")

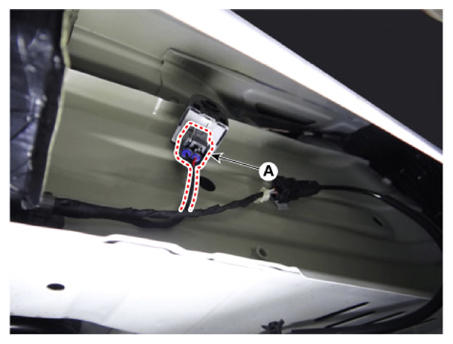

  3. Disconnect the buzzer connector (A).
  4. Test the buzzer by connecting battery power to the terminal 2 and ground the terminal 1.
G13663569Courtesy of KIA MOTORS AMERICA, INC.
