Smart Key Status Check

  1. Connect the VCI II to the Data Link Connector (DLC).
  2. After IG ON, select the "SMK STATUS INFO".

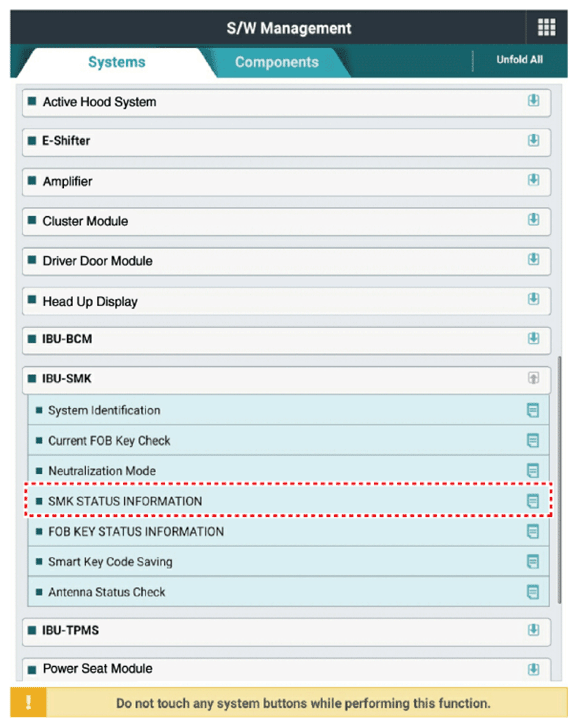

G13663599Courtesy of KIA MOTORS AMERICA, INC.

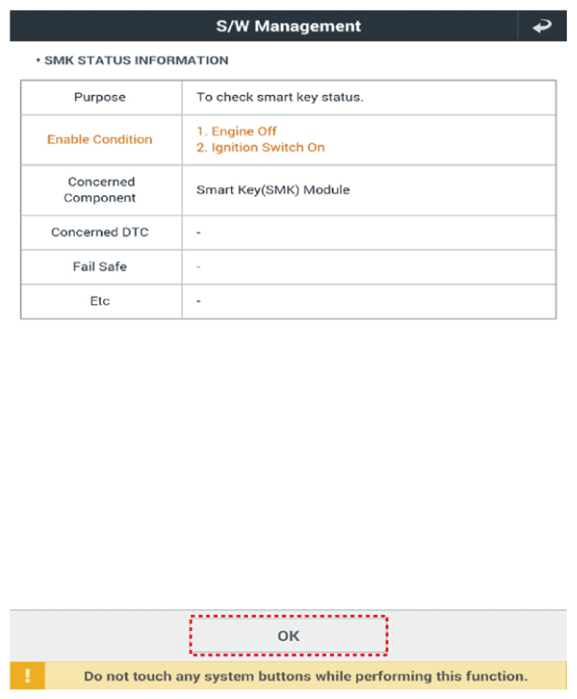

G13663600Courtesy of KIA MOTORS AMERICA, INC.

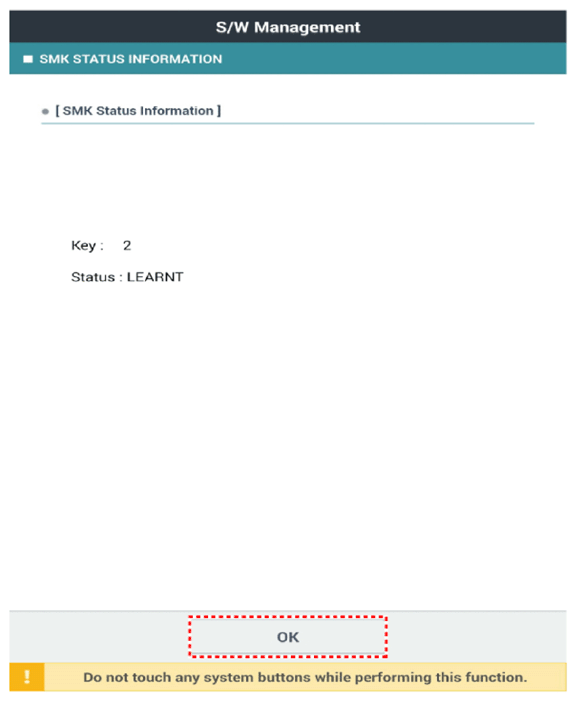

G13663601Courtesy of KIA MOTORS AMERICA, INC.
