Neutralization Status Check

Connect the VCI II to the Data Link Connector (DLC).

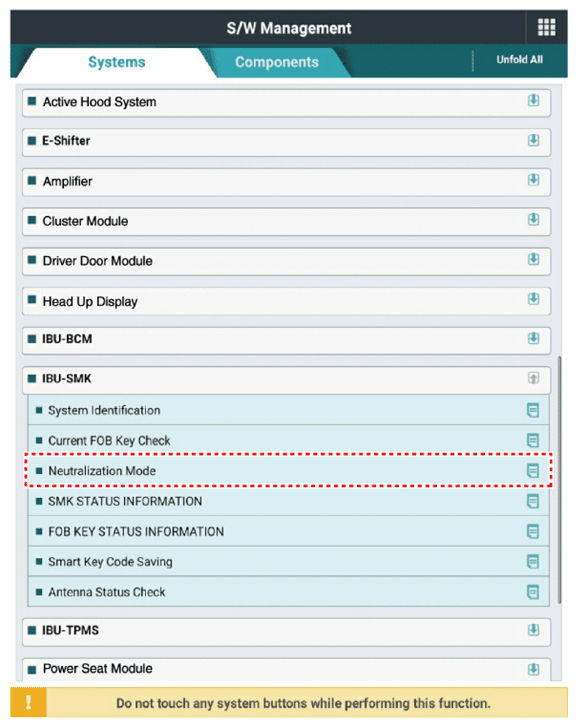

After IG ON, select the "Neutralization mode".

G13663602

Courtesy of KIA MOTORS AMERICA, INC.

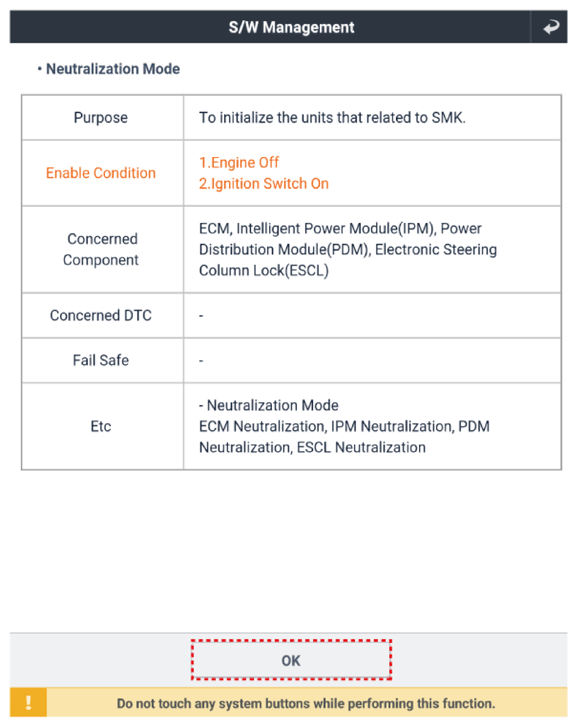

G13663603

Courtesy of KIA MOTORS AMERICA, INC.

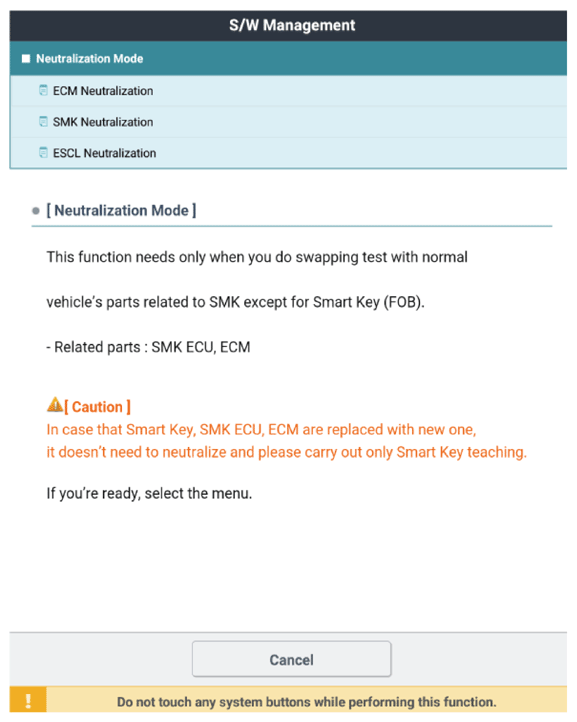

G13663604

Courtesy of KIA MOTORS AMERICA, INC.

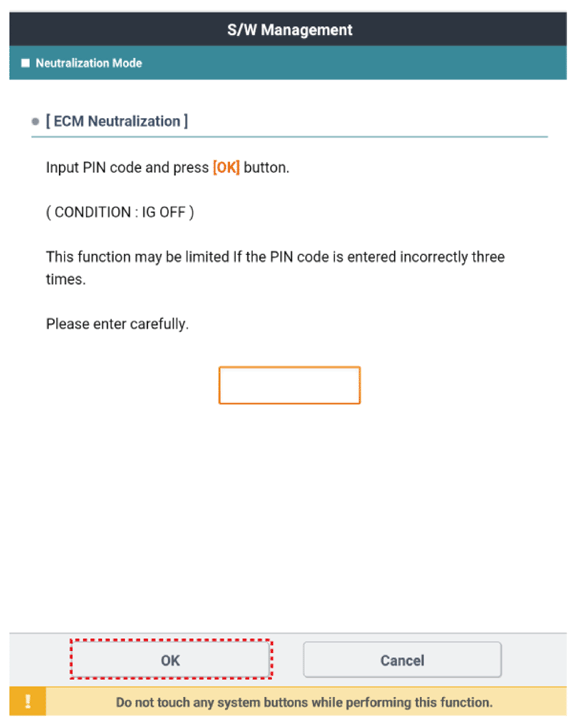

G13663605

Courtesy of KIA MOTORS AMERICA, INC.

G13663606

Courtesy of KIA MOTORS AMERICA, INC.

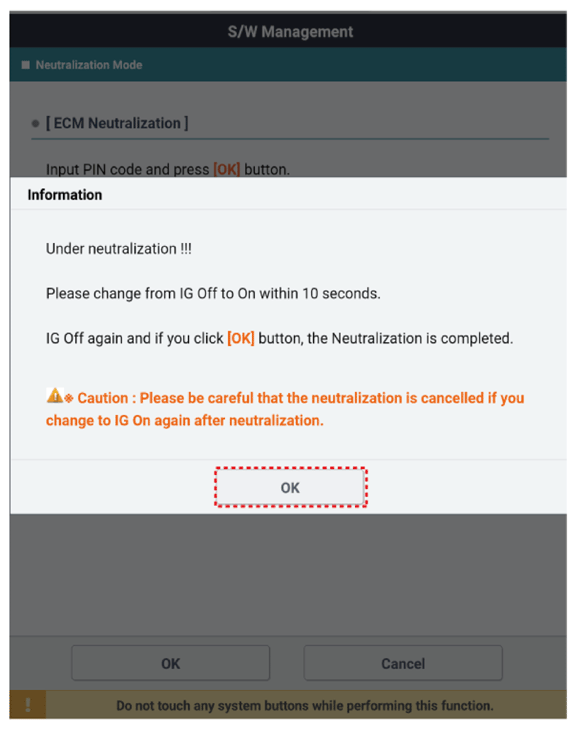

G13663607

Courtesy of KIA MOTORS AMERICA, INC.

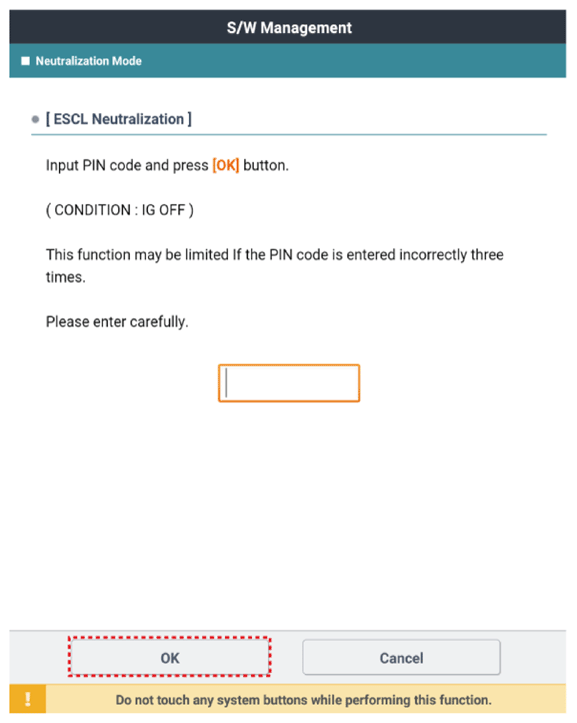

G13663608

Courtesy of KIA MOTORS AMERICA, INC.

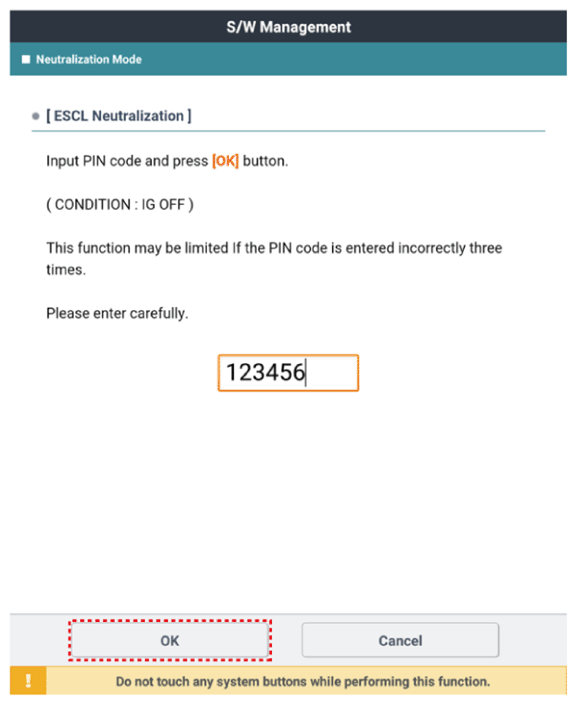

G13663609

Courtesy of KIA MOTORS AMERICA, INC.

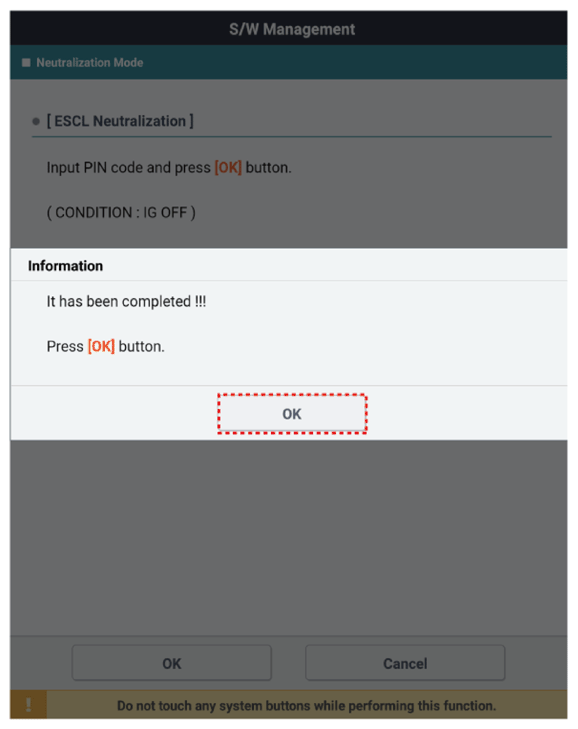

G13663610

Courtesy of KIA MOTORS AMERICA, INC.

G13663611

Courtesy of KIA MOTORS AMERICA, INC.

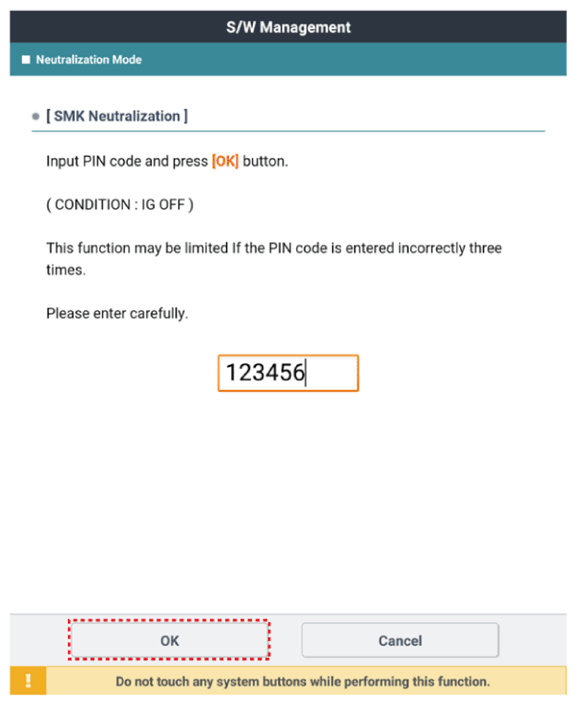

G13663612

Courtesy of KIA MOTORS AMERICA, INC.

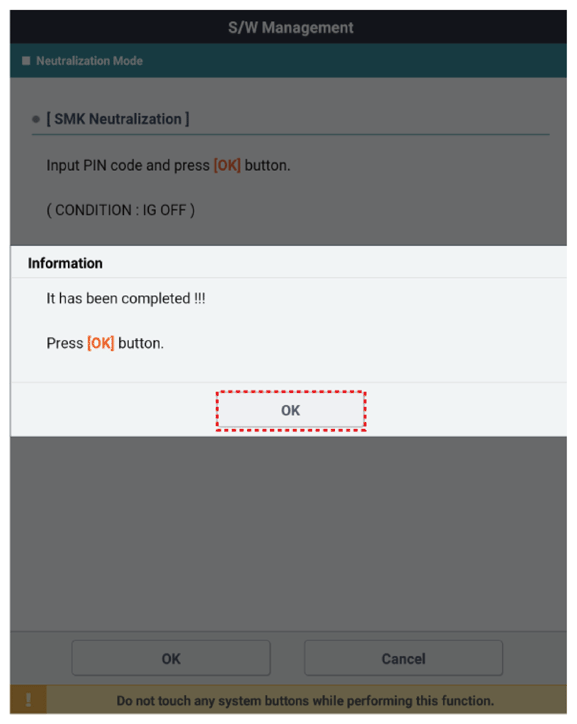

G13663613

Courtesy of KIA MOTORS AMERICA, INC.
