Component Inspection: Notes

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Actuation Test" of concerned component with KDS.	Fig.1

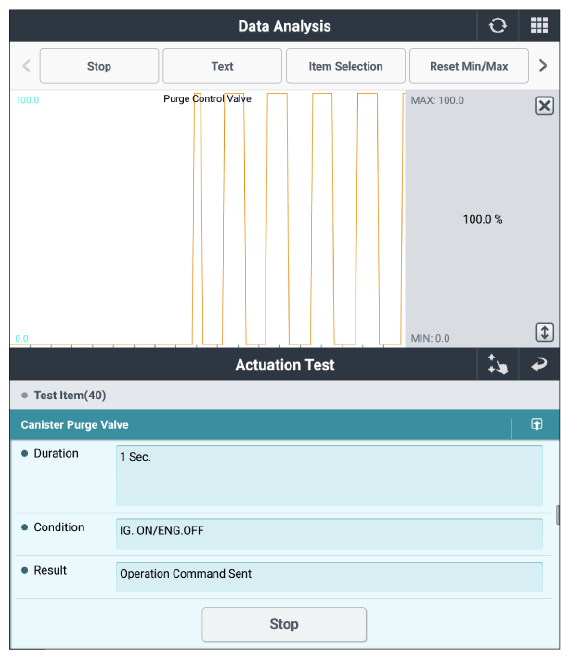

G13492783

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Canister Close Valve Inspection" procedure.

No Good

If no problems were found with the circuits or connectors, replace the PCSV and go to "Verification Of Repair " procedure.

Canister Close Valve Inspection
Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Actuation Test" of concerned component with KDS.	Fig.1 to 2

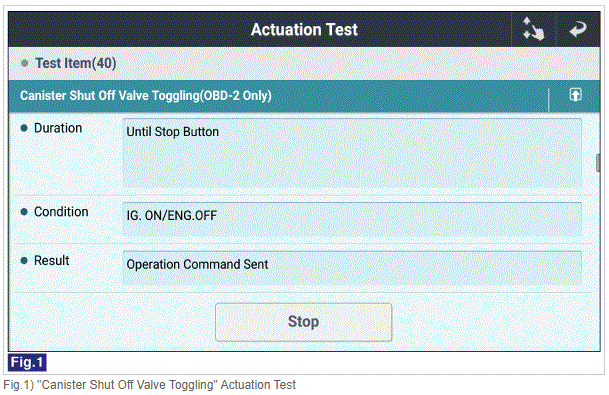

G00614899

Courtesy of KIA MOTORS AMERICA, INC.

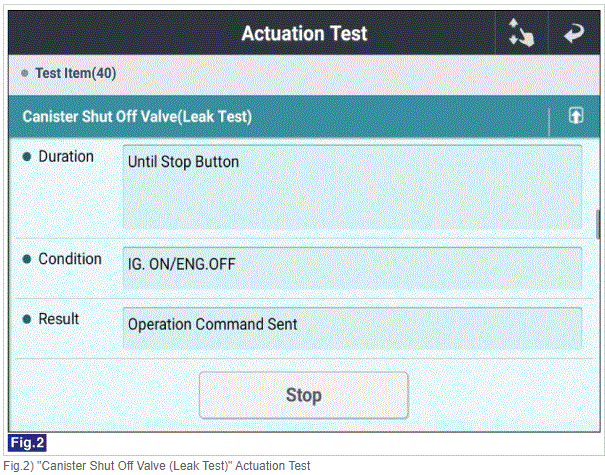

G00614900

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Visual Inspection " procedure.

No Good

If no problems were found with the circuits or connectors, replace the CCV and go to "Verification Of Repair " procedure.
