Component Inspection: Notes

Inspection Condition Inspection Procedure Reference
  1. Engine "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Actuation Test" of concerned component with KDS.

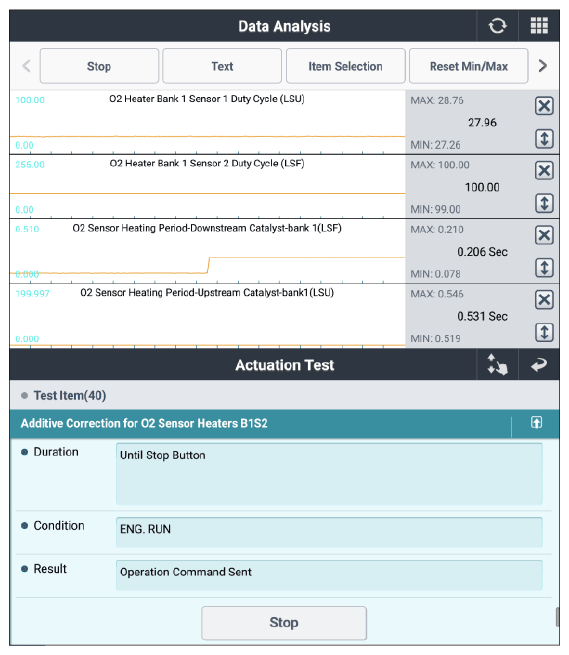

 Fig.1
G13492348Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
