Rear Power Window Motor

  1. Disconnect the negative battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

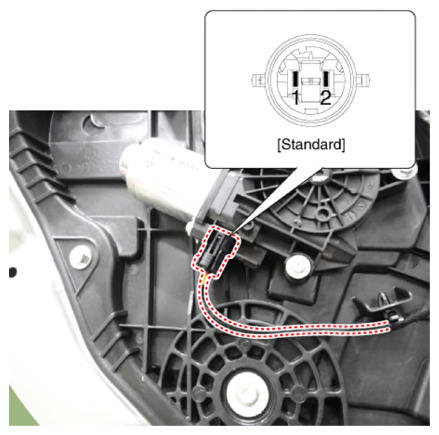

  3. Disconnect the connector from the motor.
    G13486930Courtesy of KIA MOTORS AMERICA, INC.

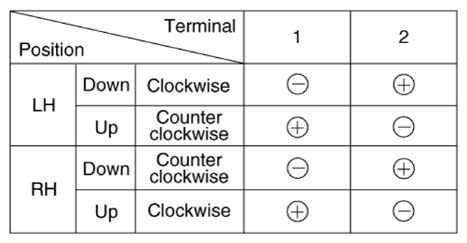

  4. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.
    G13486931Courtesy of KIA MOTORS AMERICA, INC.
