Component Location

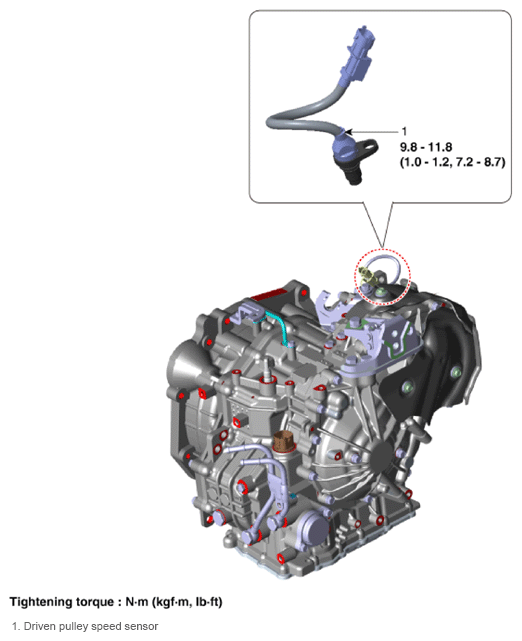

Fig 1: Driven Pulley Speed Sensor Components Location With Torque Specification

G13483202

Courtesy of KIA MOTORS AMERICA, INC.
