Gasoline T 1.6

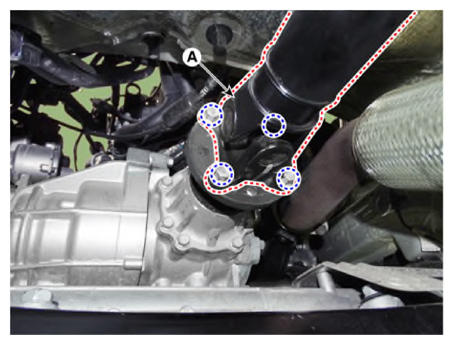

  1. Remove the propeller shaft (A) by the transfer assembly after loosening the mounting bolts.

    Tightening torque:

    49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.1 - 50.6 lb-ft)

    G13480998Courtesy of KIA MOTORS AMERICA, INC.

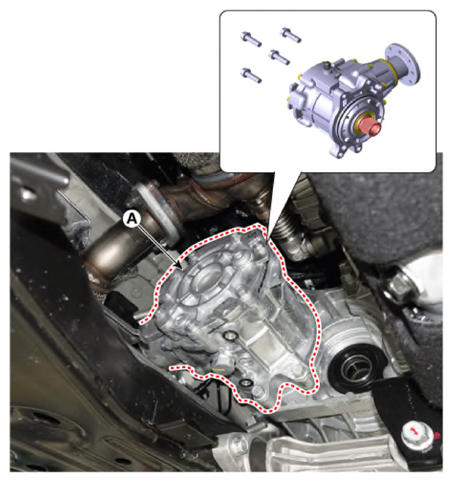

  2. Remove the transfer assembly (A) after loosening the mounting bolts.

    Tightening torque:

    49.0 - 68.6 N.m (6.2 - 6.7 kgf.m, 44.8 - 48.4 lb-ft)

    G13480999Courtesy of KIA MOTORS AMERICA, INC.
