Dust Cap

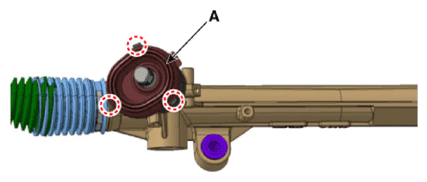

  1. Remove the dust cap cover (A).
    G13481524Courtesy of KIA MOTORS AMERICA, INC.

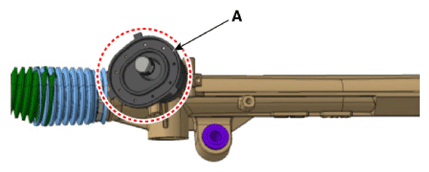

  2. Remove the dust cap (A).
    G13481525Courtesy of KIA MOTORS AMERICA, INC.
  3. Replace the dust cap.
  4. Install in the reverse order of removal.
  5. Check the alignment.

    (Refer to "FRONT WHEEL ALIGNMENT ").
