Repair Procedures: Replacement

Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

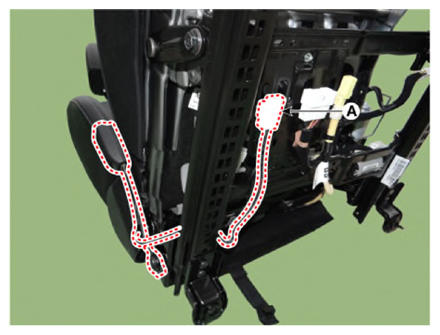

Disconnect the front seat belt buckle connector wiring (A).

Courtesy of KIA MOTORS AMERICA, INC.

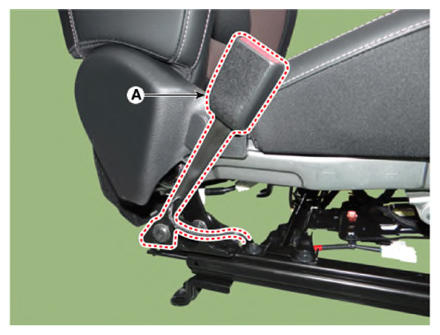

After loosening the mounting bolt, then remove the front seat belt buckle (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 Kgf.m, 28.9 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information

Make sure the connector is plugged in properly.
