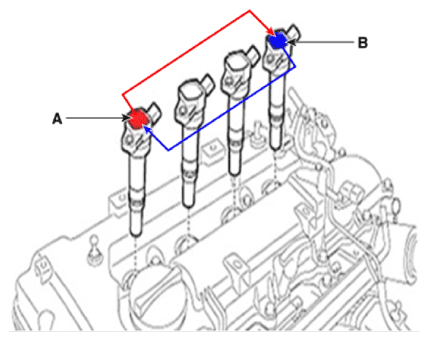

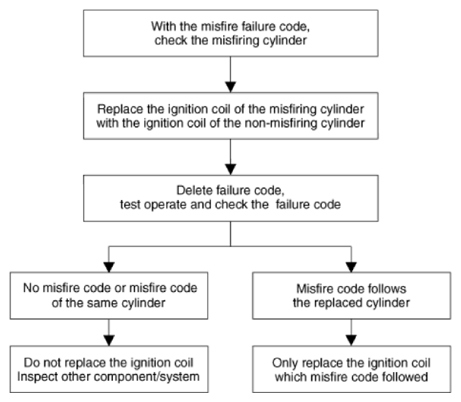

Test For Changing Position Of Each Ignition Coil

1. Ignition coil w/misfire code
2. Ignition coil w/o misfire code
   NOTE:

   • Do not move with spark plug at the same time (move the ignition coil only)
