Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the console upper cover.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

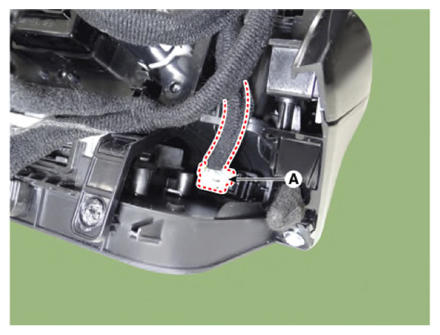

  3. Disconnect the wireless power charger indicator connector (A).
    G13486640Courtesy of KIA MOTORS AMERICA, INC.

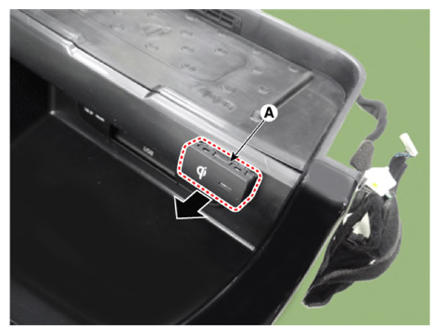

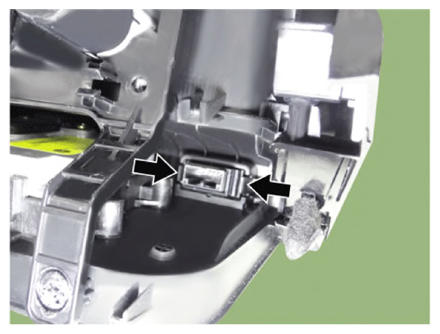

  4. Remove the wireless power charger indicator (A) by pressing the fixing hooks.
    G13486641Courtesy of KIA MOTORS AMERICA, INC.
    G13486642Courtesy of KIA MOTORS AMERICA, INC.
