Repair Procedures: Removal

[Console Upper Cover]

1. Disconnect the negative battery terminal.
2. Remove the console upper cover.

   (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

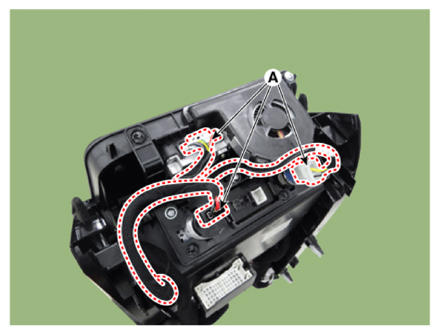

3. Disconnect the all connectors (A) from the console upper cover.

   Courtesy of KIA MOTORS AMERICA, INC.

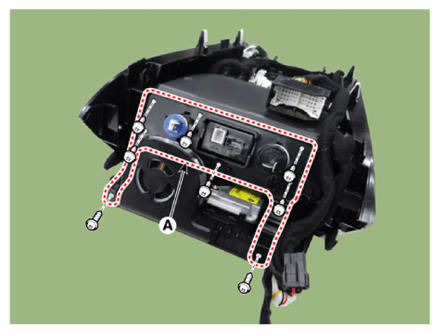

4. Remove the USB bracket (A) by loosening the mounting screws.

   Courtesy of KIA MOTORS AMERICA, INC.

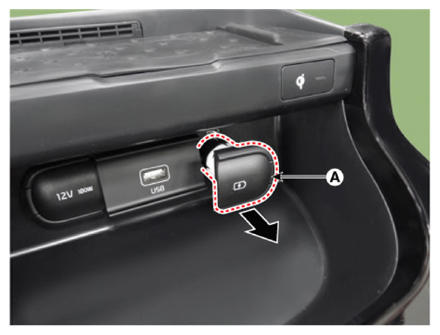

5. Remove the USB charger (A).

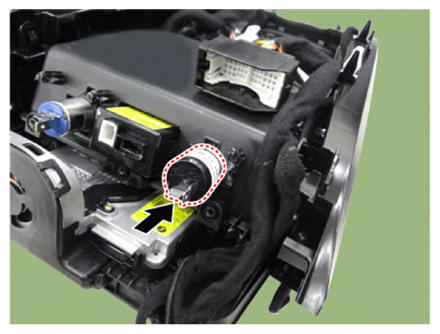

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

[Rear Console Cover]

1. Disconnect the negative battery terminal.
2. Remove the floor console assembly.

   (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

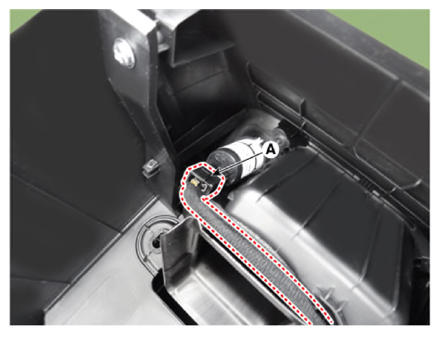

3. Disconnect the USB charger connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

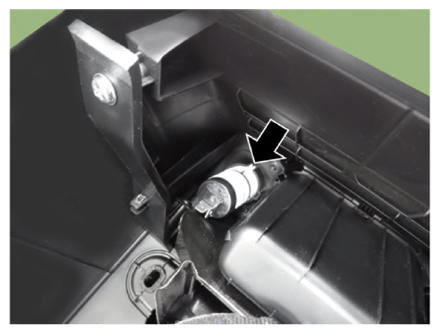

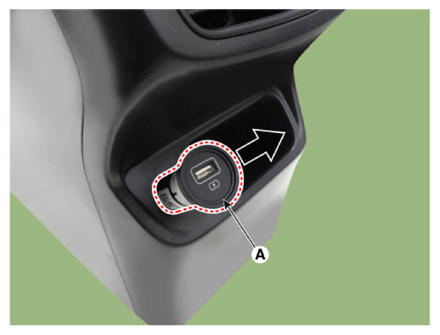

4. Remove the USB charger (A) by pressing the hook.

   Courtesy of KIA MOTORS AMERICA, INC.
