Home >> Kia >> 2021 >> Seltos EX >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle Assembly >> Front Hub - Axle >> Components & Components Location >> Components

Components & Components Location: Components

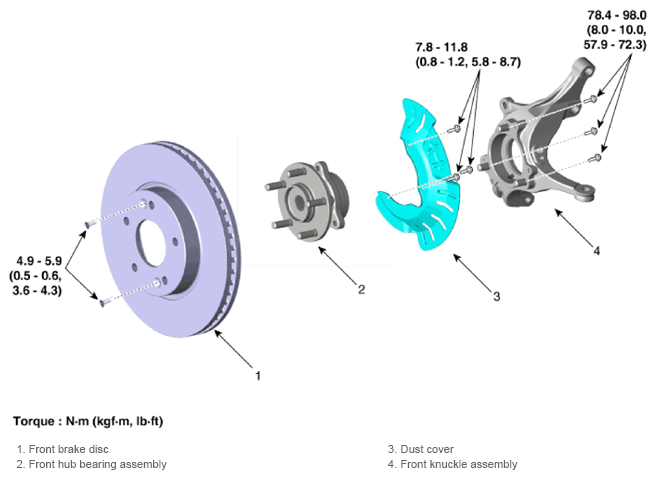

Fig 1: Front Hub - Axle Components Location With Torque Specification

G13481072

Courtesy of KIA MOTORS AMERICA, INC.
