Repair Procedures: Removal

  1. Remove the front seat outer shield cover.

    (Refer to Body - "FRONT SEAT OUTER SHIELD COVER ")

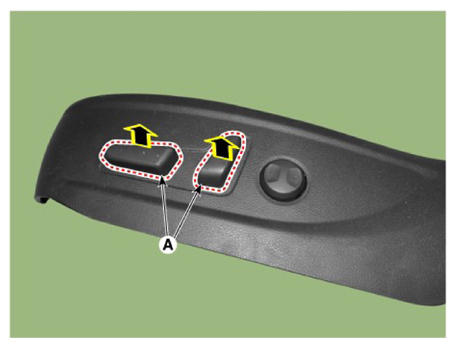

  2. Remove the knob (A) from the power seat control switch.
    G13482038Courtesy of KIA MOTORS AMERICA, INC.

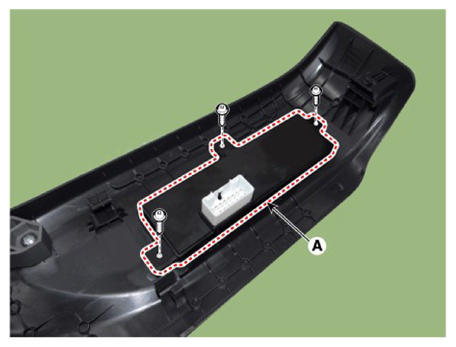

  3. Remove the power seat control switch (A) after loosening the screws.
    G13482039Courtesy of KIA MOTORS AMERICA, INC.
