Repair Procedures: Removal

  1. Remove the front seat back.

    (Refer to Body - "FRONT SEAT BACK COVER ")

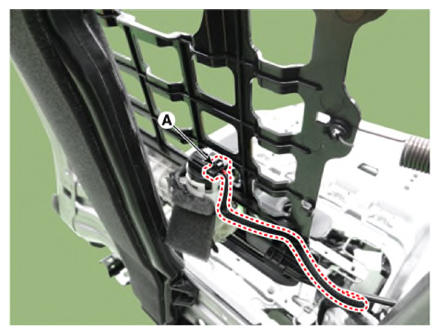

  2. Disconnect the connector (A) from lumbar support motor.
    G13482035Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the side airbag.

    (Refer to Restraint - "SIDE AIRBAG MODULE ")

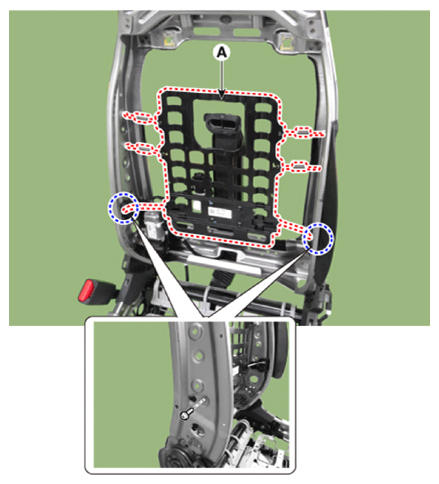

  4. Remove the lumbar support (A) after loosening the screws.
    G13482036Courtesy of KIA MOTORS AMERICA, INC.
