Repair Procedures: Inspection

  1. Remove the front seat back.

    (Refer to Body - "FRONT SEAT BACK COVER ")

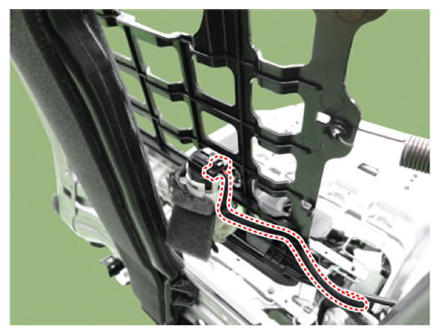

  2. Disconnect the connector (A).
    G13482033Courtesy of KIA MOTORS AMERICA, INC.
  3. When the battery power is supplied to the motor connector, check the motor for smooth operation.
    G13482034Courtesy of KIA MOTORS AMERICA, INC.
