Removal and Installation

Disconnect the battery negative terminal.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")
Disconnect the radiator upper hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the radiator lower hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER COVER ")

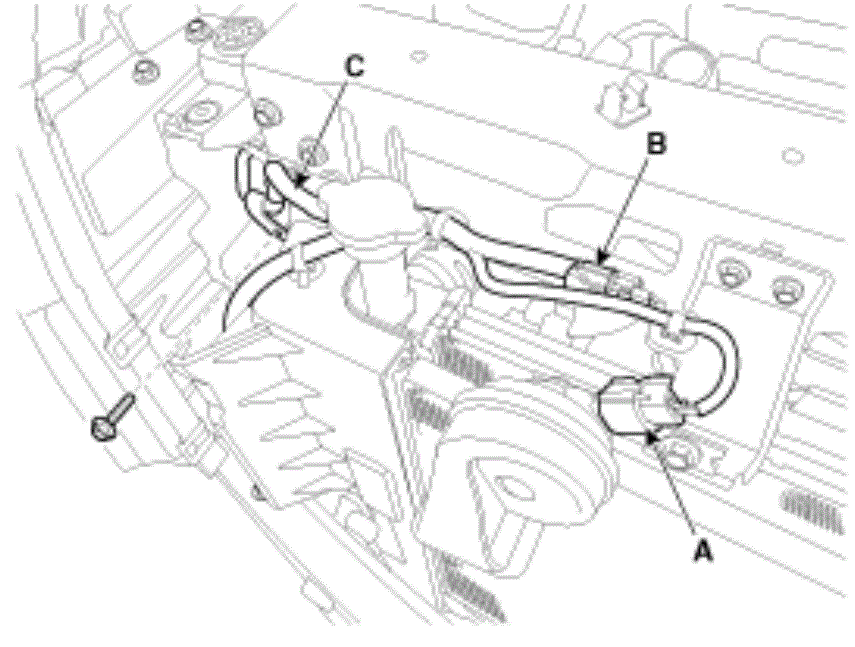

Disconnect the horn connector (A), hood latch connector (B) and over flow hose (C).

Courtesy of KIA MOTORS AMERICA, INC.
Remove he cooling fan assembly.
(Refer to Cooling System - "COOLING FAN ")

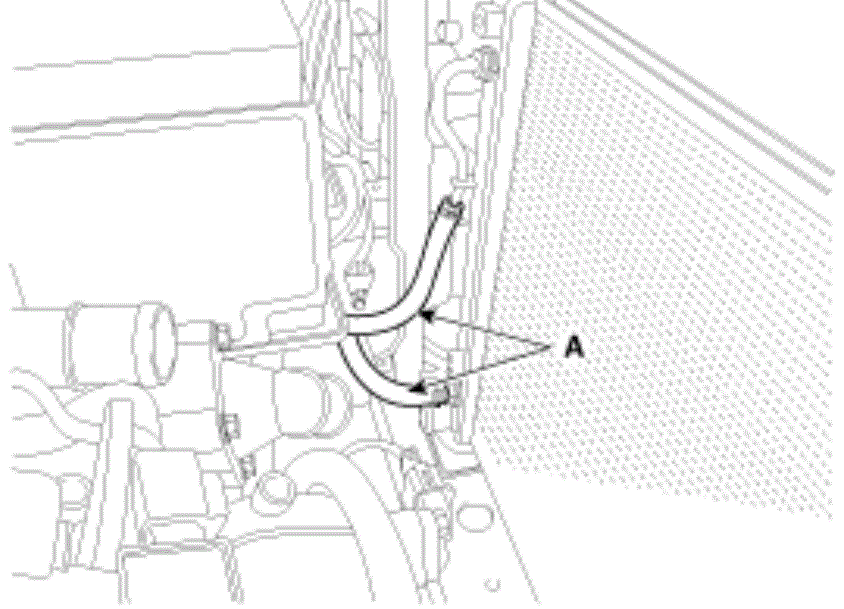

Disconnect the ATF cooler hoses (A).

Courtesy of KIA MOTORS AMERICA, INC.

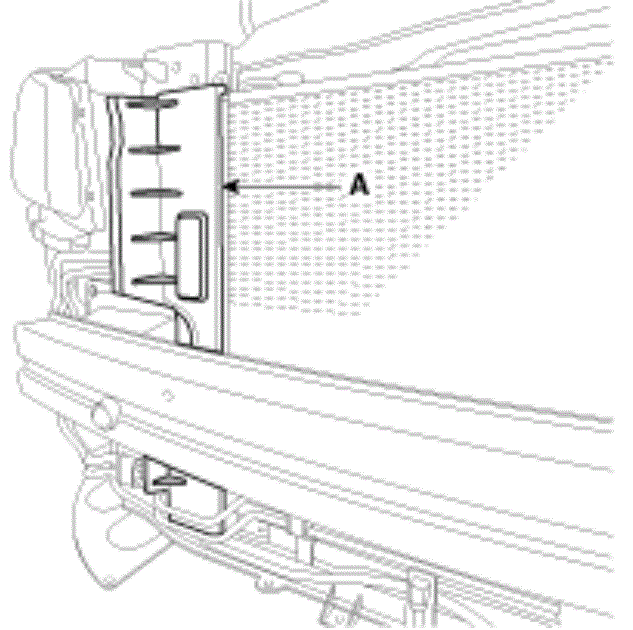

Separate the air guard (A).
[RH]

Courtesy of KIA MOTORS AMERICA, INC.

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

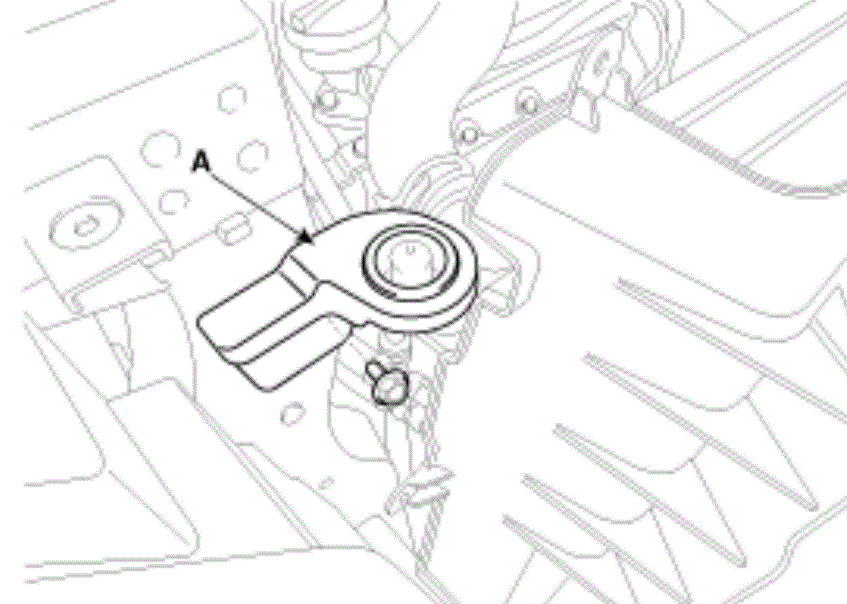

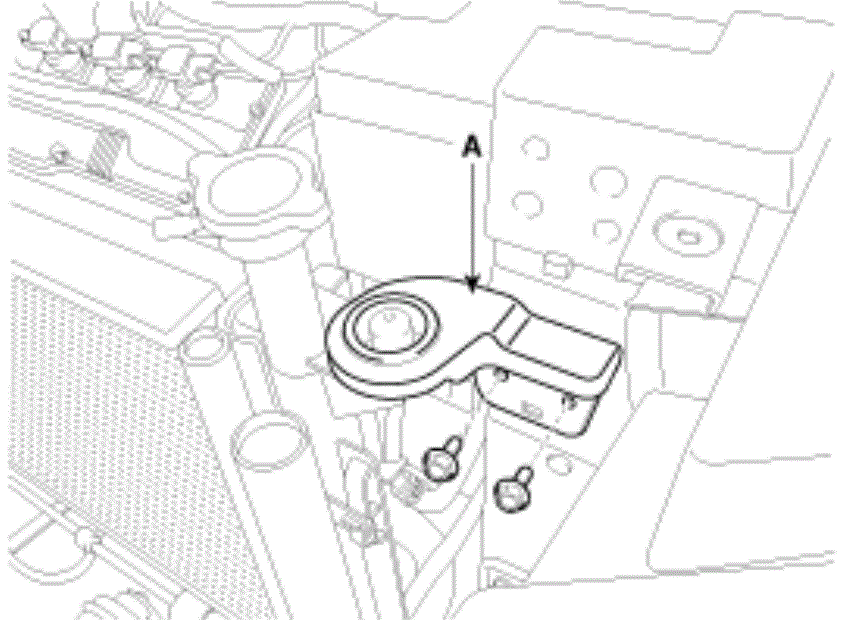

Remove the radiator upper bracket (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.6 lb-ft)

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

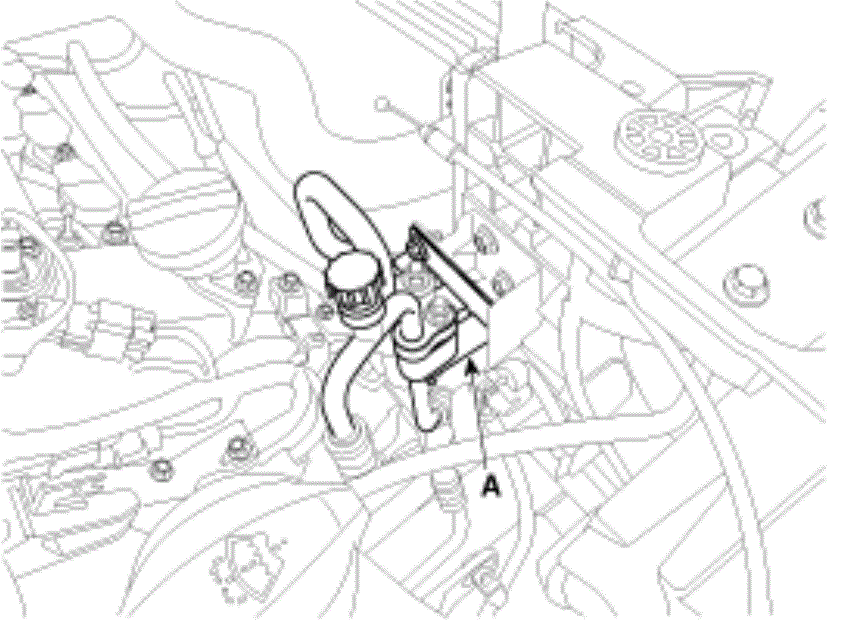

Separate A/C pipe bracket (A).

Courtesy of KIA MOTORS AMERICA, INC.

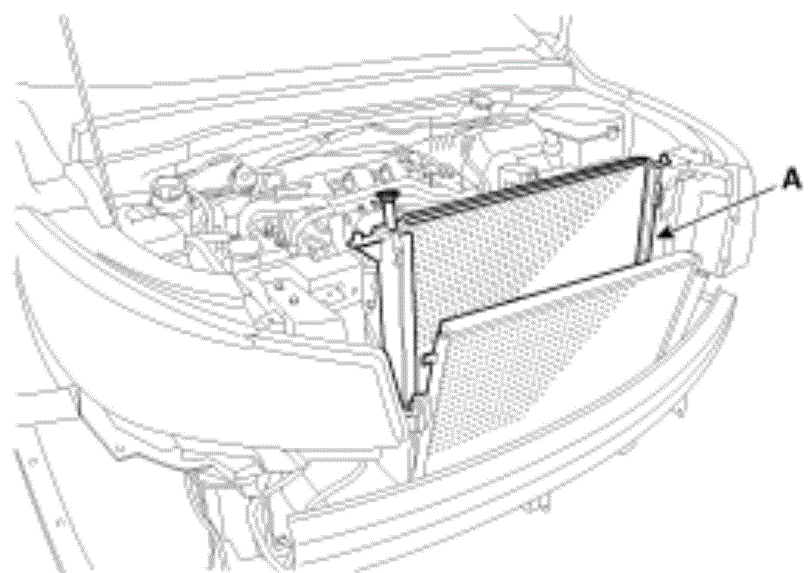

Separate the radiator assembly (A) to obtain space for removing the air guard.

Courtesy of KIA MOTORS AMERICA, INC.

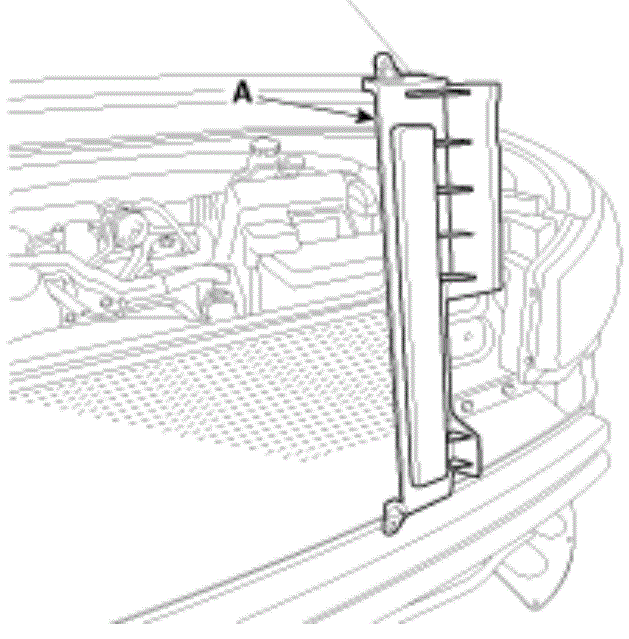

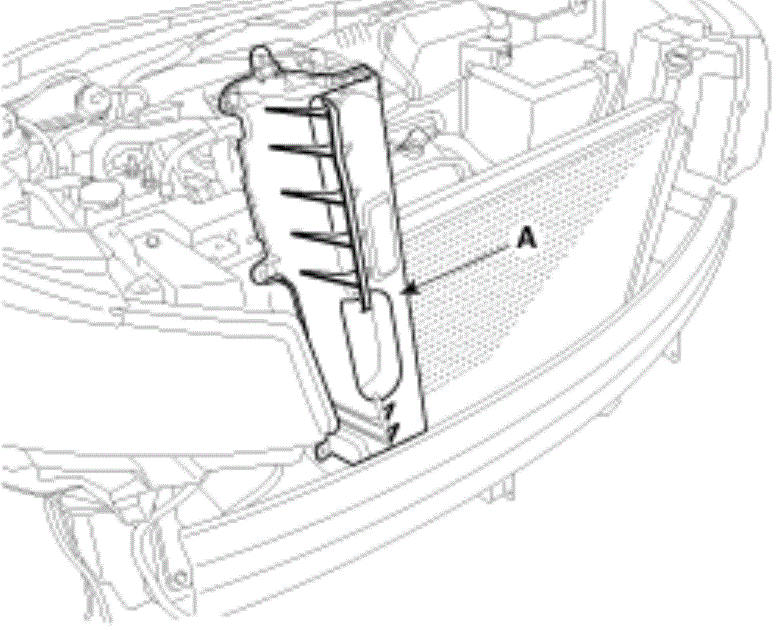

Remove the RH air guard (A).

Courtesy of KIA MOTORS AMERICA, INC.

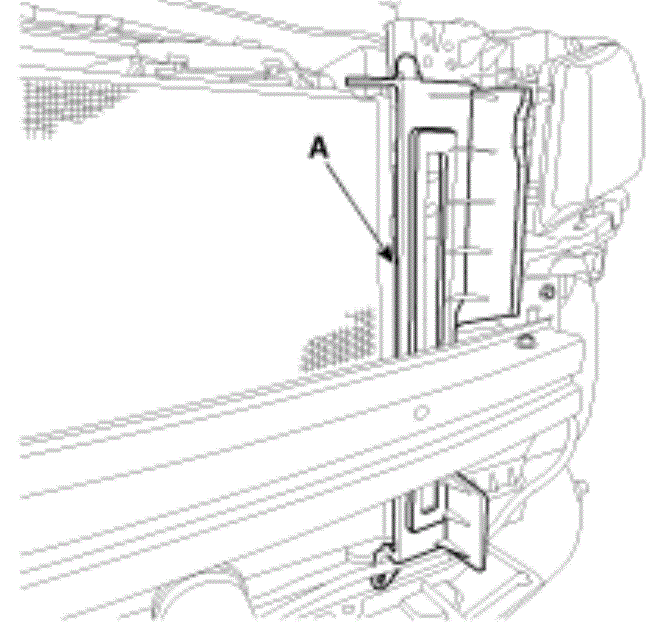

Remove the LH air guard (A).

Courtesy of KIA MOTORS AMERICA, INC.

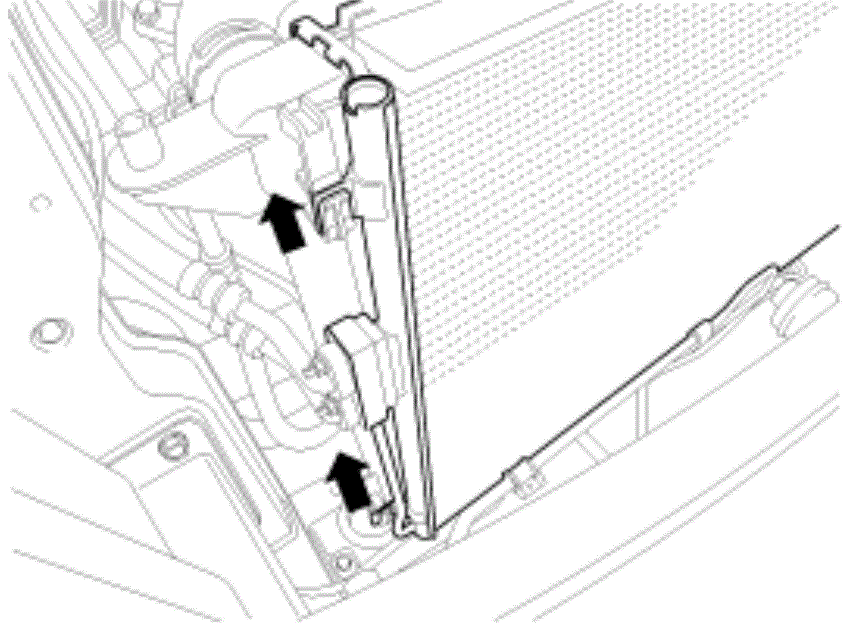

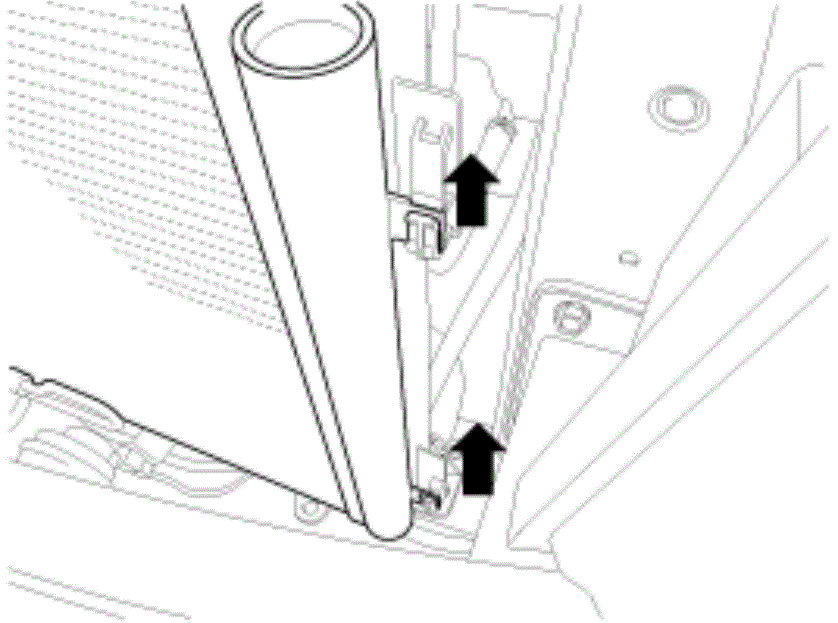

Separate the condenser from the radiator.
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

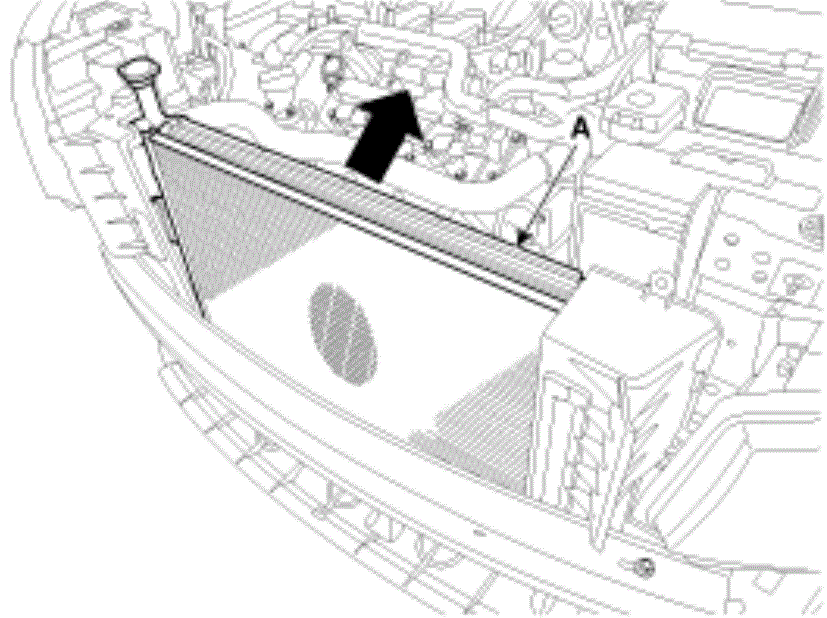

Pull the radiator (A) upward and remove it from engine room.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Fill the radiator with coolant.
(Refer to Cooling System - "COOLANT ")
Start engine and check for leaks.
