Repair Procedures: Replacement

  1. Remove the rear transverse trim.

    (Refer to Interior Trim - "REAR TRANSVERSE TRIM ")

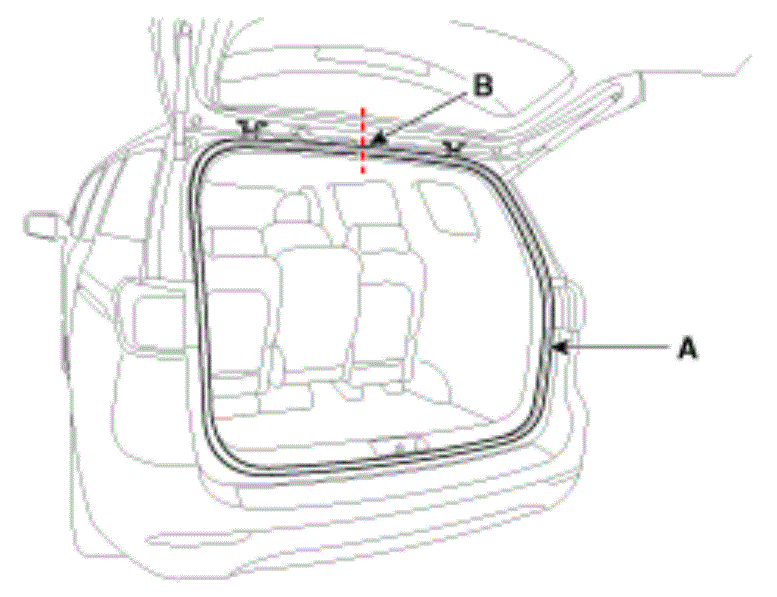

  2. Remove the tail gate weatherstrip (A).
    NOTE: Do not apply sealant to the body.
    G13045761Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.

    Information

    Install the weatherstrip aligned with center line (B).
