Tail gate upper trim

CAUTION: Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Take care not to scratch the body surface.

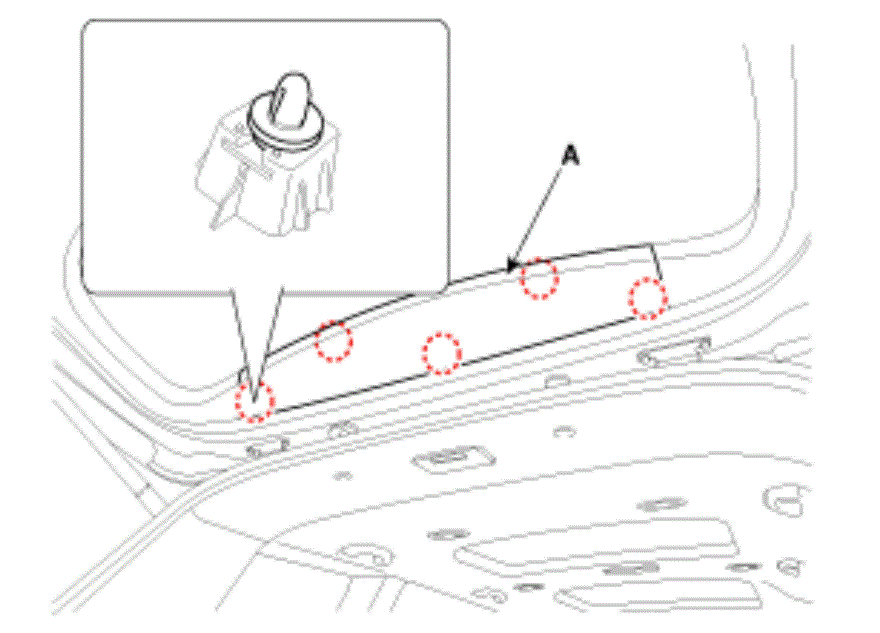

  1. Using a screwdriver or remover, remove the tail gate upper trim (A).
    G13045748Courtesy of KIA MOTORS AMERICA, INC.
  2. Install in the reverse order of removal.

    Information

    • Replace any damaged clips.
