Repair Procedures: Replacement

Drain the power steering fluid.
Remove the surge tank.
(Refer to Engine Mechanical System - "SURGE TANK ")
Remove the center muffler
(Refer to Engine Mechanical System - "MUFFLER ")
Remove the front muffler.
(Refer to Engine Mechanical System - "MUFFLER ")
Remove the bolt (A) and nut (B) from the heat protector.
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

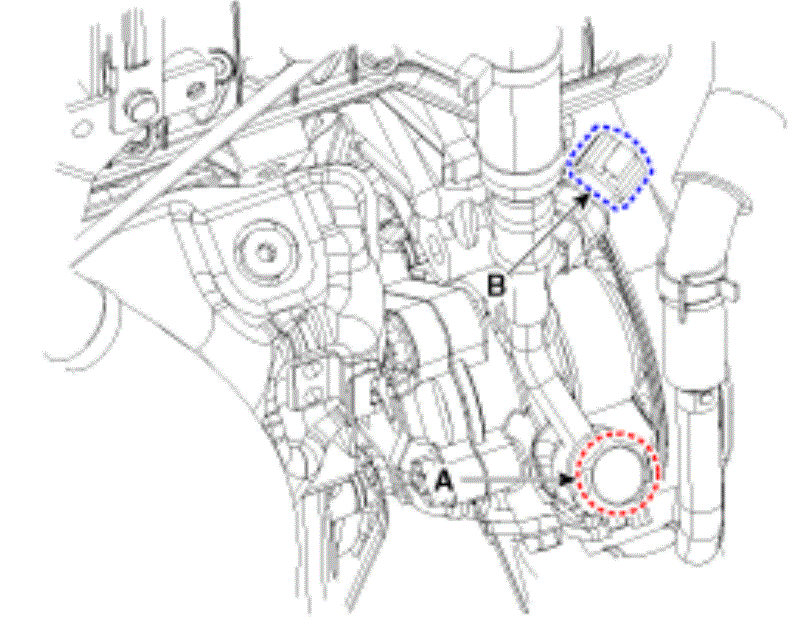

Disconnect the power pump bolt (A) and commentator (B).

Courtesy of KIA MOTORS AMERICA, INC.

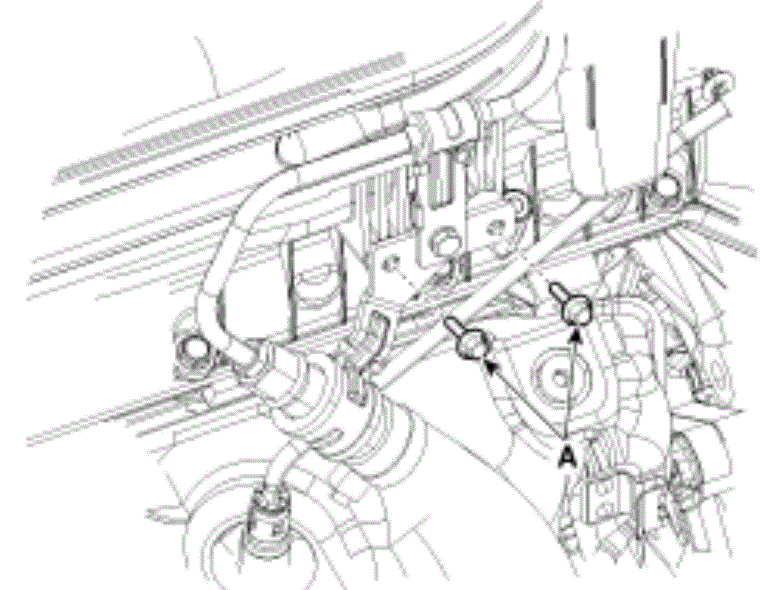

Loosen the bolts (A) and then disconnect the power steering bracket.

Courtesy of KIA MOTORS AMERICA, INC.

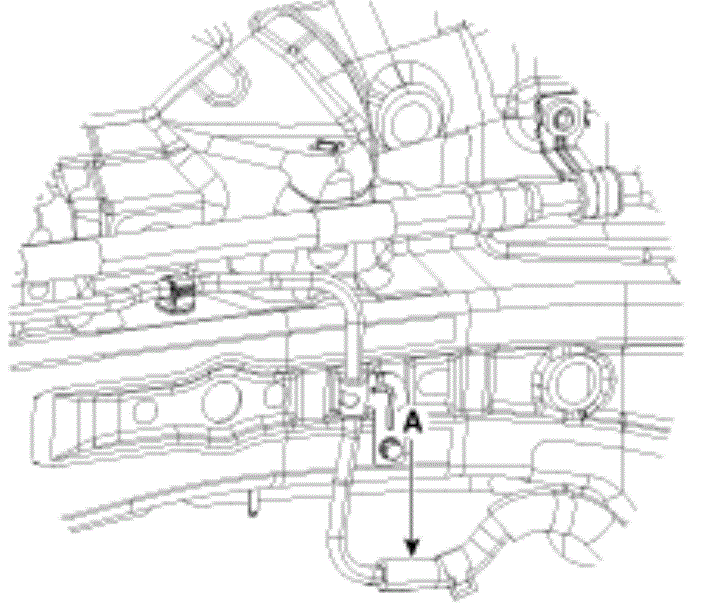

Disconnect the gear box fit tube (A).
Tightening torque:

11.8 ~ 17.7 N.m (1.2 ~ 1.8 kgf.m, 8.7 ~ 13.0 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the power steering hose bolts (A),

Courtesy of KIA MOTORS AMERICA, INC.

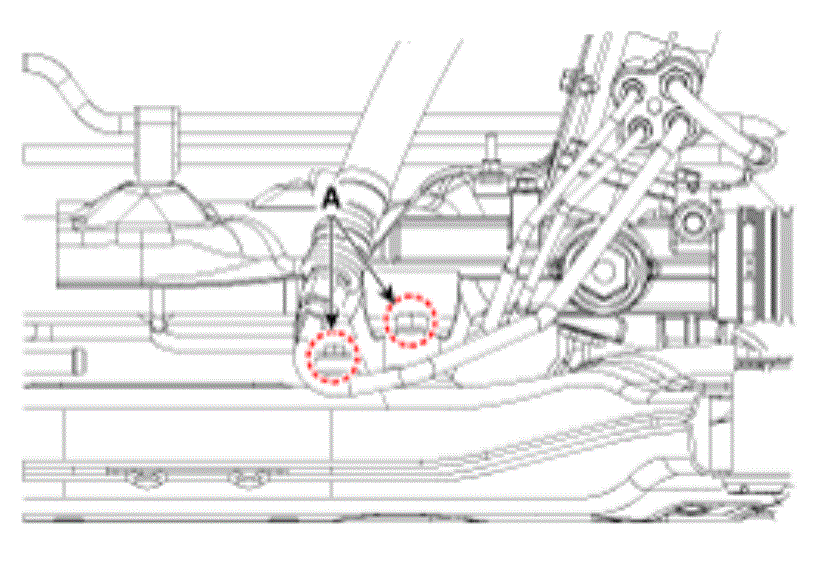

Disconnect the power steering hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Installation in the reverse order of removal.
