Repair Procedures: Replacement

Remove the front wheel and tire (A) from front hub.
Tightening torque:

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb.ft)

CAUTION: Be careful not to damage the hub bolts when removing the front wheel and tire (A).

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolt (A) and then disconnect the universal joint assembly (B) from the pinion of the steering gear box.
Tightening torque:

32.4 ~ 37.3 N.m (3.3 ~ 3.8 kgf.m, 23.9 ~ 27.5 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Insert the universal joint to the gear box certainly.
- Do not reuse the bolt (A).

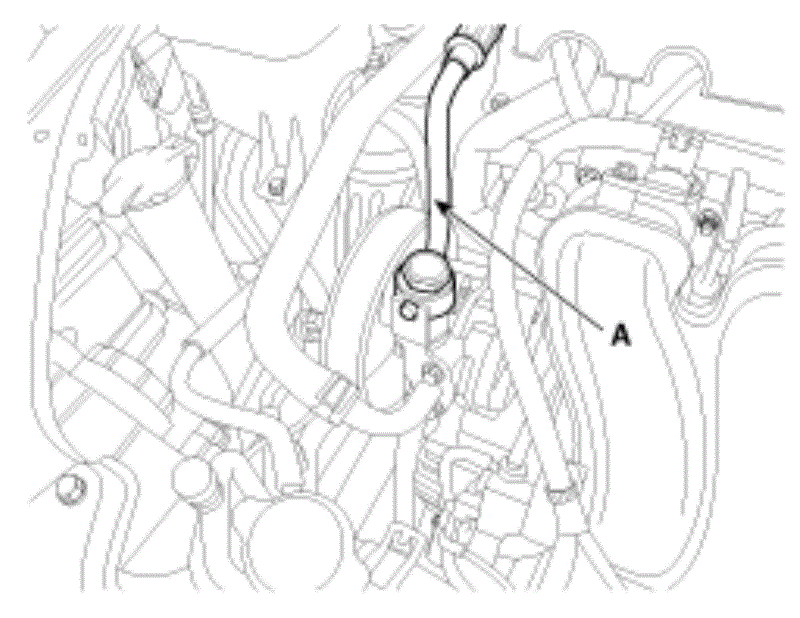

Disconnect the pressure hose (A), return hose (B) and then drain the power steering fluid.
Tightening torque:

53.9 ~ 63.7 N.m (5.5 ~ 6.5 kgf.m, 39.8 ~ 47.0 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front sub frame.
(Refer to Suspension System - "SUB FRAME " - proceed on step 4)
Remove the bolt (A) and nut (B) from the heat protector.
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the pressure hose bracket bolt (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the gear box fit tube (A).
Tightening torque:

11.8 ~ 17.7 N.m (1.2 ~ 1.8 kgf.m, 8.7 ~ 13.0 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the gear box (A) from the sub frame.
Tightening torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Check the wheel Alignment.
(Refer to Suspension System - "ALIGNMENT ")
