Transaxle Mounting Bracket

Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the engine control module (ECM).
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
Install jack under the transaxle to support it.
NOTE: Insert a rubber block between jack and transaxle.

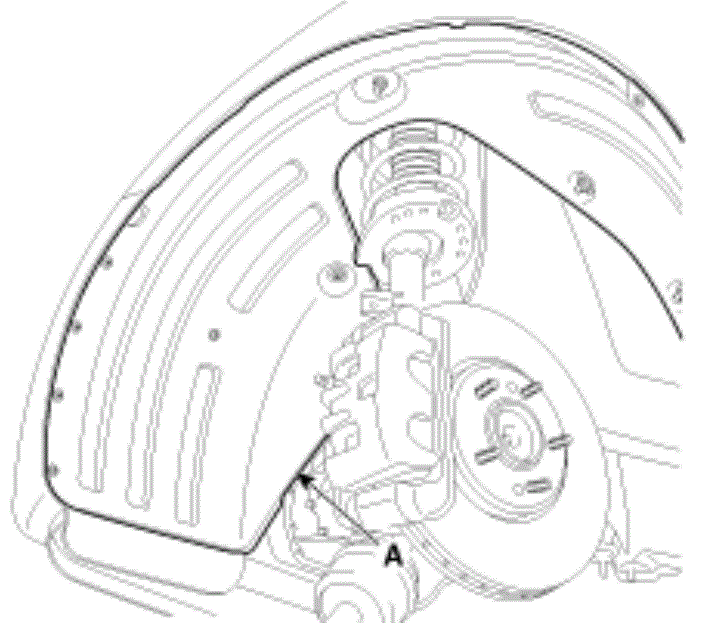

Remove the LH front wheel guard (A).

Courtesy of KIA MOTORS AMERICA, INC.

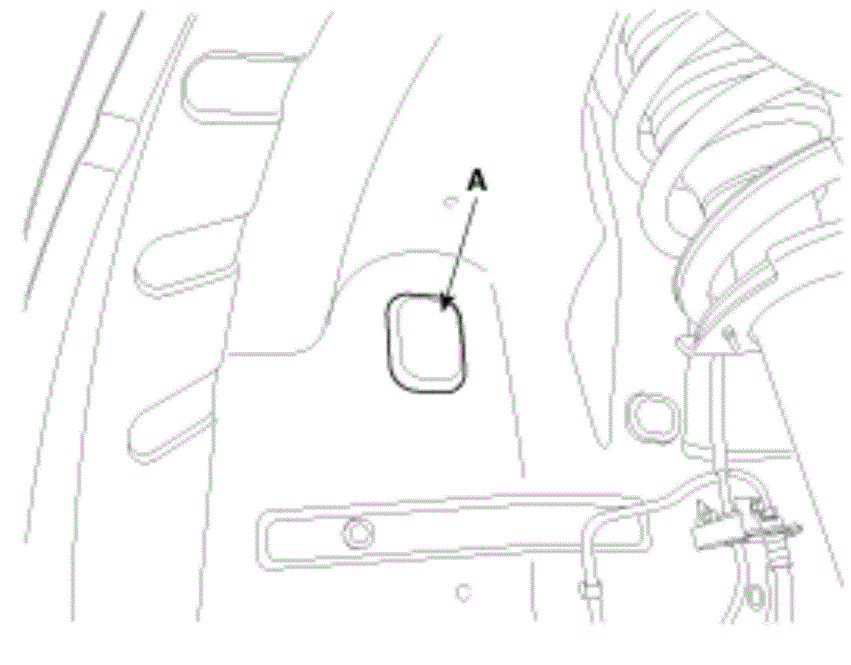

Remove the service cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

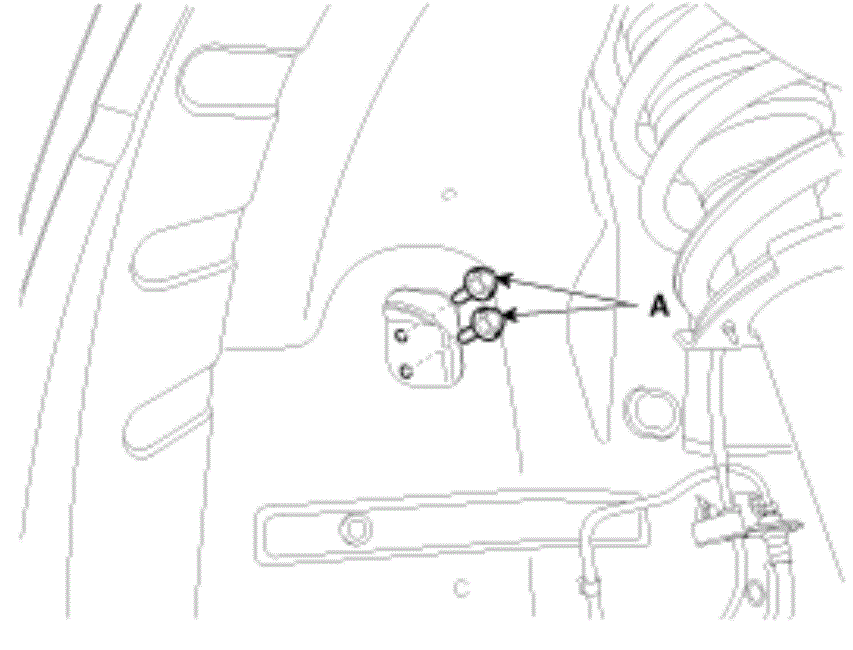

Remove the transaxle support bracket mounting bolt (A).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

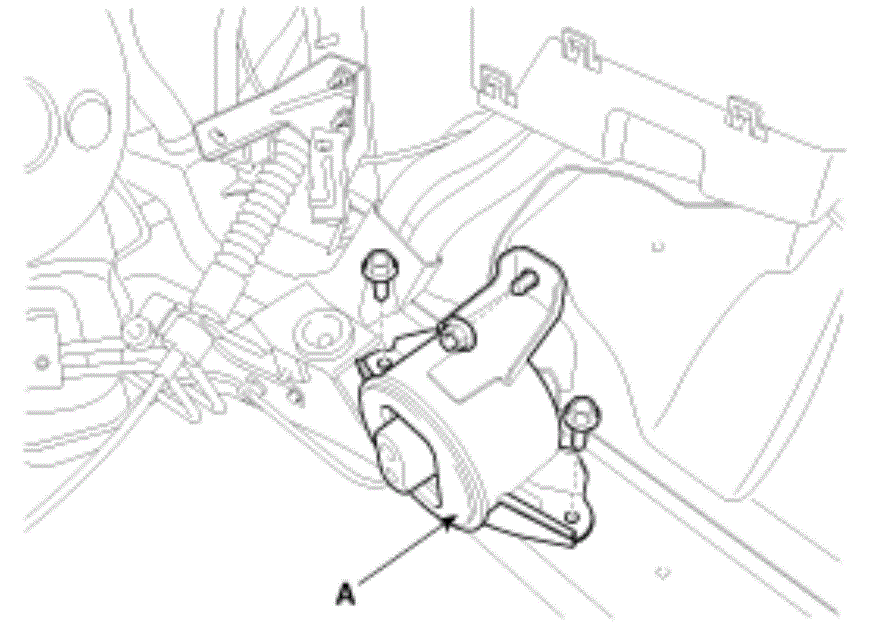

Remove the transaxle mounting bracket (A).
Tightening torque:

63.7 ~ 83.3 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
