Engine Mounting Bracket

Disconnect the negative battery terminal.
Install the jack to the edge of the lower oil pan to support the engine.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Insert a rubber block between jack and upper oil pan.
Remove the engine mounting support bracket (A).
Tightening torque

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Separate the reservoir tank to allow space for removing the engine mounting bracket.
(Refer to Cooling System - "RESERVOIR TANK ")

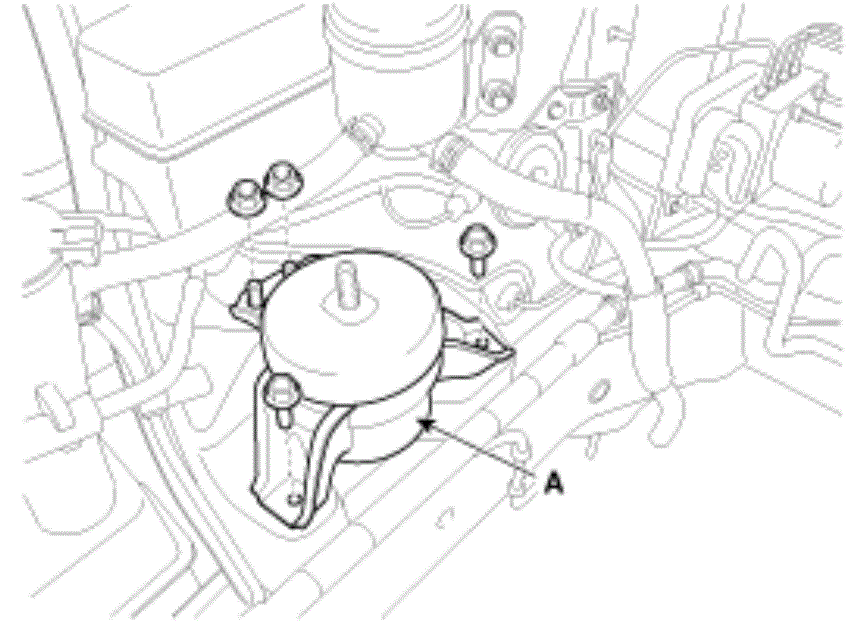

Remove the engine mounting bracket (A).
Tightening torque:

68.6 - 88.3 N.m (7.0 - 9.0 kgf.m, 50.6 - 65.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
