Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference

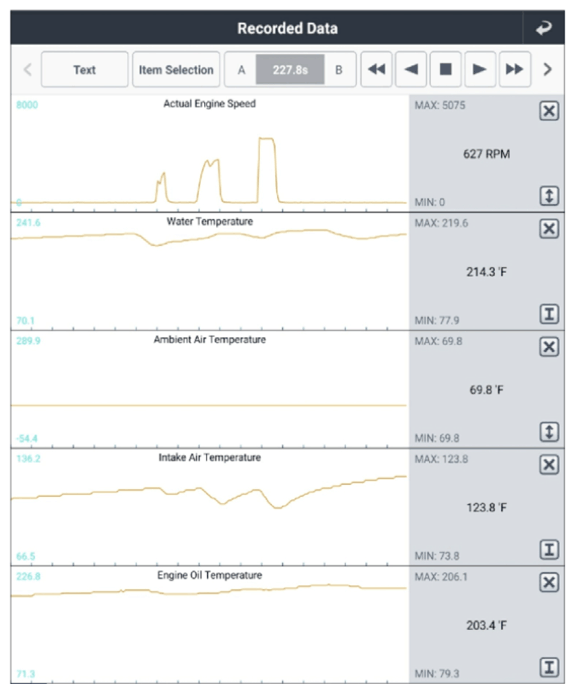

Ignition "ON"	Connect KDS to Data Link Connector (DLC). Monitor parameters in "Current Data" with KDS.	figures 1 to 2 below.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.

No Good
