Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

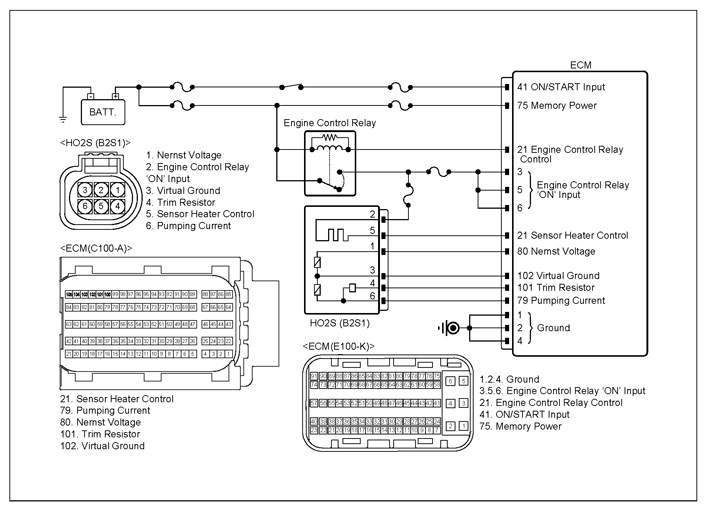

Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	HO2S (B2/S1) connector	2 (Power)	Chassis ground	-	B+
	HO2S (B2/S1) connector	5 (Control)	Chassis ground	-	Approx. 2.5V
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component and ECM.	HO2S (B2/S1) connector	5 (Control)	Chassis ground	-	∞ (Infinite)Ω

Good

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
